In this interview, Dylan Nelson delves into the critical importance of temperature sensing in electric E-Motors for transportation.
What is the crucial role of temperature sensing in e-motors?
Temperature sensing is critical for the performance and dependability of electric motors. These motors are at the heart of EVs, transforming battery power into wheel drive. Effective temperature monitoring helps prevent overheating, which can dramatically shorten a motor's lifespan and lead to failures.
Sensors give real-time data by continually monitoring the temperature of the motor, allowing them to alter operating conditions and helping to prevent damage. Overheating can deteriorate the motor's materials and diminish its performance, resulting in increased maintenance costs and downtime.
Can you tell us about the market opportunity for electrifying drivetrains in electric cars (EVs)?
The market for electrification of drivetrains is expanding quickly. The electric motor (E-Motor) industry is expected to increase at a CAGR of 8.5 % over the next decade.
This rise is being driven by the rising usage of electric vehicles (EVs), as more customers and businesses seek sustainable and environmentally friendly transportation alternatives.
With the worldwide quest to minimize carbon emissions and reliance on fossil fuels, electric vehicles (EVs) are becoming a transportation industry staple. The need for efficient, dependable, and high-performance electric motors is increasing, creating considerable opportunities for advancements in E-Motor technology and accompanying components such as temperature sensors.
Could you please describe the properties and uses of several types of e-motors?
E-Motors come in a variety of designs, including brushed and brushless DC motors, permanent magnet synchronous motors, and induction motors. Each design has unique benefits and applications.
Brushed DC motors are simple and inexpensive, making them ideal for situations where fine control is not required. Brushless DC motors provide improved efficiency and dependability, making them suitable for applications that require precise speed control and a long operating life.
Permanent magnet synchronous motors are well-known for their great efficiency and power density, making them ideal for high-performance applications like sports automobiles and in-wheel motor systems. Induction motors, on the other hand, are durable and can work in difficult conditions, making them ideal for industrial applications.
Where and why is temperature sensing often done in E-Motors?
Temperature sensing is primarily performed on the stator and motor coil due to their stationary nature. While detecting moving parts can be challenging, these environments provide reliable temperature data for the motor, which is essential for effective thermal management.
The stationary nature of the stator simplifies sensor installation and maintenance. Additionally, the motor coil, which generates the most heat due to electrical resistance, is a critical area for temperature measurement. Monitoring the temperature in these regions helps maintain optimal operating conditions and prevents overheating.
What are the essential metrics for assessing E-Motor performance?
Power, power density, efficiency, torque, robustness, and cooling techniques are the primary parameters used to evaluate E-Motor performance. Power and power density are crucial because they affect the motor's capacity to offer the necessary performance in a small form factor.
Efficiency is crucial for decreasing energy use and increasing vehicle range. Torque, or the rotating force generated by the motor, is vital for vehicle acceleration and performance.
Robustness refers to the motor's capacity to tolerate extreme circumstances while remaining reliable over time. Cooling techniques are essential for regulating the heat generated during operation and keeping the motor within acceptable temperature limits.

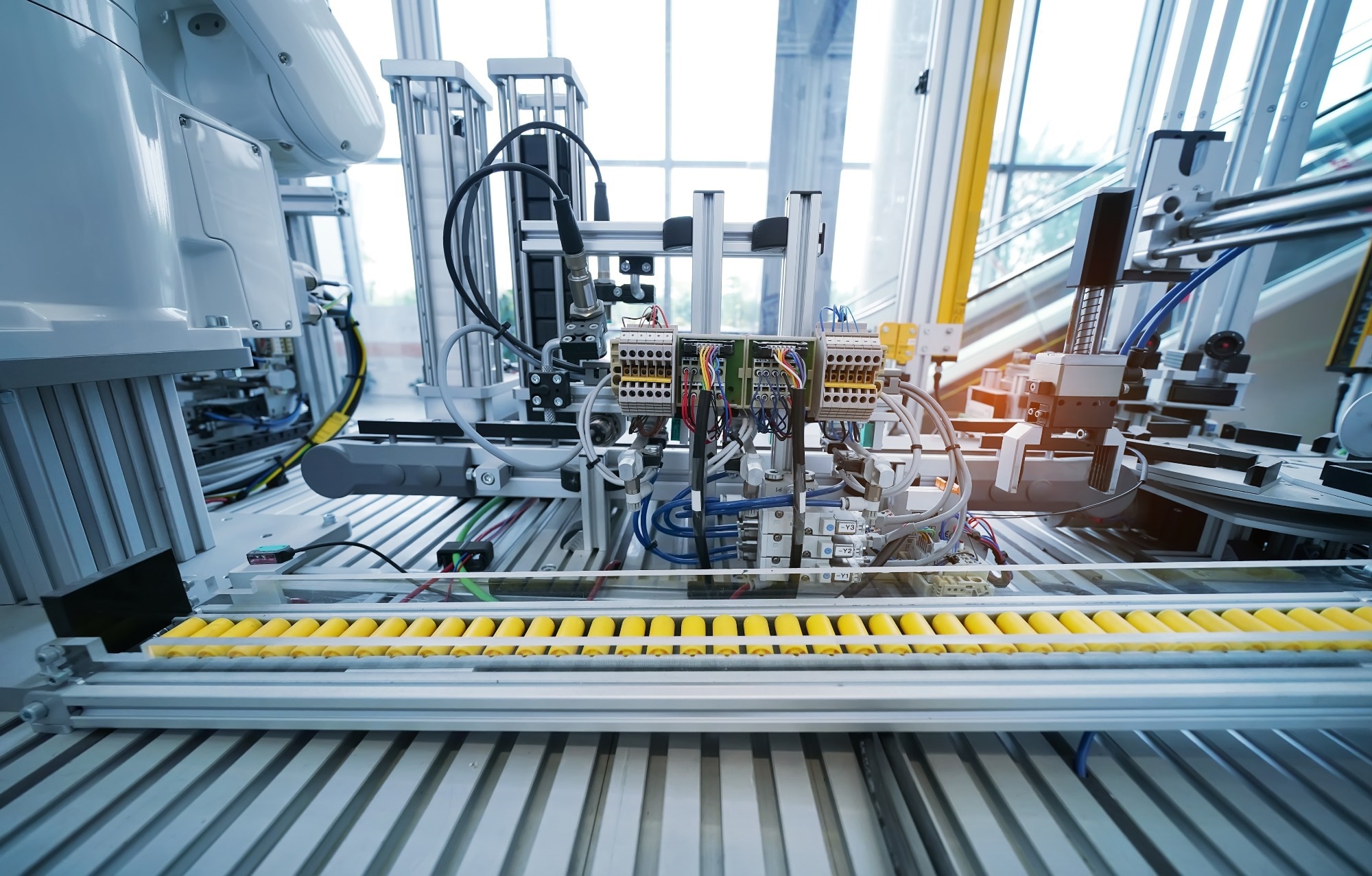

Image Credit: asharkyu/Shutterstock.com
Can you talk about some advances in E-Motor designs that improve their efficiency?
One major advancement is the use of hairpin windings in permanent magnet synchronous motors. This design improves both efficiency and power density, making these motors ideal for high-performance, in-wheel applications. Hairpin windings use rectangular wire instead of circular wire, which allows for a larger fill factor in the stator slots.
This design enhances the motor's electrical and thermal qualities, decreasing resistance while enhancing efficiency. It also improves thermal management since the enhanced winding structure allows for more efficient heat dissipation.
What are the most prevalent failure modes in E-Motors, and how can temperature monitoring help?
Overheating is a leading cause of e-motor failures. Overheating can be caused by improper motor use, an inappropriate voltage supply, or insufficient thermal management.
Even a 10 °C rise in motor winding temperature can reduce the motor's lifespan in half. This sharp drop emphasizes the significance of accurate temperature detection to maintain optimal operating conditions.
Overheating can deteriorate insulating materials, resulting in short circuits and other electrical difficulties. It can also harm the mechanical components, causing wear and tear and lowering the motor's efficiency and performance. By monitoring and managing the motor's temperature, you may avoid these problems and increase the motor's operating life.
What temperature sensor designs do you offer?
We provide a variety of designs, including integrated flying lead clip-on type sensors, motor coil sensors, and bespoke designs adapted to specific client needs. Each design seeks to provide accurate and dependable temperature monitoring.
Integrated flying lead clip-on sensors are easy to install and maintain, making them suitable for a wide range of applications. These motor coil sensors are designed to provide accurate temperature readings of the motor winding, which is crucial for effective thermal management.
Custom designs enable us to accommodate unique client requirements, ensuring that our sensors give the highest possible performance in their respective applications.
How crucial are coolant systems in maintaining proper motor temperatures?
Coolant systems are essential for maintaining optimal motor temperatures. Effective cooling—whether through liquid or air—ensures efficient motor operation and extends its lifespan.
Liquid cooling systems, for instance, often offer more efficient heat dissipation compared to air cooling, making them well-suited for high-performance applications. Properly designed coolant systems manage the heat produced during motor operation, preventing overheating and ensuring the motor operates within safe temperature limits.
Who are the key clients for temperature sensors in electric motors?
Our key target clients are major EV manufacturers like Volkswagen, BMW, GM, Tesla, and BYD, as well as Tier 1 suppliers like ABB, Borg Warner, DENSO, and Vitesco. These firms are at the vanguard of the electric car sector, and their success depends on trustworthy and high-performance components. Temperature sensors play an important part in guaranteeing the performance and dependability of E-Motors, making them a must-have for these manufacturers.
Can you offer any client success stories?
We have had various successes, including cooperation with Jaguar Land Rover, Renault, and Daimler. These projects entailed creating and testing prototypes to satisfy particular client requirements, yielding high-performance and dependable sensors that improve motor efficiency and dependability.
For example, our partnership with Jaguar Land Rover involved the development of unique temperature sensors for their electric car motors, which improved thermal management and vehicle performance.
Similarly, we worked with Renault and Daimler to integrate our sensors into their motor designs, giving accurate temperature monitoring that improved the dependability and economy of their electric cars.
What are the future trends in temperature sensors and electric motor technology?
Sensor technology and motor design innovations are emerging trends that will improve efficiency and performance even more. Innovations such as more integrated and precise temperature sensors will continue to play an important part in the expanding electric car industry.
For example, improved sensor materials and designs with greater accuracy and faster reaction times will enhance heat management and motor performance. Furthermore, advances in motor technology, such as more efficient winding designs and cooling systems, will improve the efficiency and dependability of E-Motors.
