Modern heating, ventilation and air conditioning (HVAC) systems of all kinds are more sophisticated and responsive to all elements of operation than ever before.

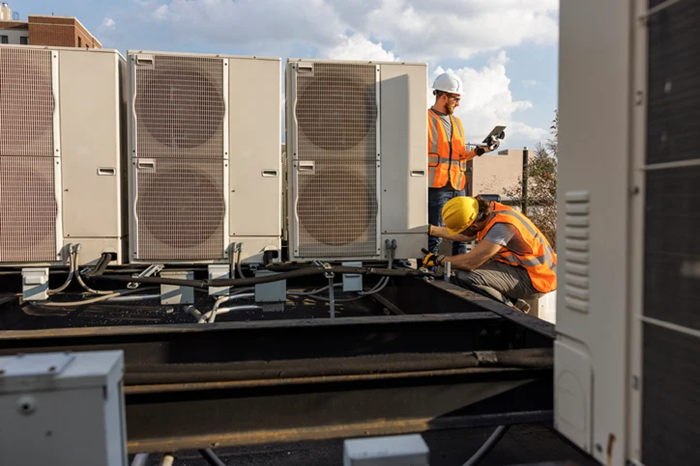

Image Credit: Amphenol Advanced Sensors
They all have the same base function, but due to the progression in sensor technology and system integration, HVAC systems have become more capable, intelligent, and flexible.
Modern HVAC systems are intended for heating, cooling, and ventilation, improving indoor air quality, optimizing energy usage, and enhancing occupant comfort above and beyond temperature control.
HVAC Sensors for System Design and Functionality
While various sensors can be integrated into your system to monitor or control a range of metrics, there are four main sensors any HVAC system should include.
Consumers can choose between a traditional version or an advanced upgrade for each sensor.
Temperature Sensors
Temperature sensors may be considered the most important within an HVAC system, as they control its primary function. They monitor ambient temperatures and activate the system to keep conditions within a specific range.
Three primary types of temperature sensors are used within HVAC design for climate control systems:
- Thermocouples measure temperature by creating a voltage that changes with temperature. They are favored for their wide temperature range and quick response time.
- Resistance temperature detectors (RTDs) operate by altering resistance predictably alongside temperature changes. They are highly accurate and stable over a wide range.
- Thermistors vary their electrical resistance in response to changes in temperature, offering precise temperature measurements within a limited range.
Traditional vs Advanced Temperature Sensors
Traditional temperature sensors in HVAC systems, such as thermocouples and RTDs, measure ambient temperature to regulate temperature. Such sensors often have slower response times than modern temperature sensors and may not accurately reflect fast temperature changes or microclimatic variations in larger spaces.
The limited precision of traditional sensors can result in inefficient energy usage, as the system may overheat or overcool areas, impacting both comfort and energy consumption.
Advanced temperature sensors, such as smart and network-connected sensors, have revolutionized HVAC system functionality. These sensors offer quicker response times and improved accuracy, allowing for more precise climate control.
Advanced temperature sensors can adapt in real-time to environmental changes, optimizing energy usage by adjusting heating and cooling outputs more efficiently.
With integrated IoT technology, advanced temperature sensors facilitate predictive maintenance and system diagnostics, reducing downtime and prolonging system life.
Pressure Sensors
Though they serve different functions and monitor different metrics, HVAC pressure sensors are not unlike temperature sensors in system design for optimized system performance and energy efficiency.
Pressure sensors provide vital data for maintaining pressure levels across various system parts, directly influencing functionality and efficiency.
Areas these sensors are found include:
- Refrigerant circuits regulate the refrigeration cycle and are crucial for effective cooling and energy efficiency.
- Air ducts ensure balanced air distribution, vital for consistent climate control across different zones.
- Filters detect differential pressure across air filters, crucial for identifying filter blockages, timely maintenance, and sustaining air quality.
Traditional vs Advanced Pressure Sensors
Like traditional HVAC temperature sensors, traditional pressure sensors are commonly limited in sensitivity and have slower response times. This can result in less efficient airflow control and imprecise refrigerant pressure management, reducing system efficiency and increasing energy consumption.
Traditional sensors' lack of detailed diagnostic capabilities can inhibit effective maintenance, potentially increasing system stress.
Advanced HVAC pressure sensors incorporate digital and smart technologies, significantly enhancing system performance and efficiency. These modern sensors deliver more accurate and real-time pressure data, enabling precise control of airflow and refrigerant levels.
With improved sensitivity and rapid response, advanced sensors optimize system operation by adapting quickly to changes and reducing energy waste.
Advanced sensors are integrated with IoT systems, enabling predictive maintenance and remote monitoring.
Humidity Sensors
HVAC humidity sensors assist the system in keeping airborne moisture levels within healthy and comfortable parameters by calculating the moisture content in the air. Correct humidity control is vital for comfort, avoiding health issues, and conserving building materials.
There are two key types of HCAC humidity sensors:
- Capacitive sensors calculate humidity based on variations in electrical capacitance caused by moisture absorption. They are usually the most cost-effective and are commonly used in commercial HVAC systems because of their reliability and accuracy.
- Resistive sensors calculate humidity through fluctuations in electrical resistance in a hygroscopic material. While simpler and less expensive, resistive sensors are less accurate than capacitive sensors and can be more vulnerable to corruption and long-term drift.
Not only do HVAC humidity sensors maintain indoor humidity levels within an acceptable range, but they also help inhibit mold growth and condensation. Mold can pose significant health risks and damage building structures, while condensation may lead to discomfort and the corrosion of indoor surfaces.
Traditional vs Advanced Humidity Sensors
While efficient for simple humidity control, traditional HVAC humidity sensors may have slow response times, and their accuracy may decrease over time due to contamination or material degradation. This leads to poor humidity regulation and influences indoor air quality and occupant comfort.
The limited sensitivity and slower recalibration of traditional humidity sensors may result in inadequate inhibition of mold and condensation development, leading to potential health issues and damage to structures.
By leveraging new technologies, advanced humidity sensors provide substantial developments in HVAC system functionality, including enhanced capacitive sensors with improved accuracy, quicker response times, and greater resistance to contamination.
Advanced sensors also offer more precise and consistent humidity control, vital for optimizing indoor air quality and comfort. Combined with smart HVAC systems, these sensors can dynamically adjust to fluctuations in indoor and outdoor conditions and effectively manage moisture levels.
Indoor Air Quality (IAQ) Sensors
IAQ sensors are vital for monitoring and managing pollutant levels within indoor environments. There are many IAQ sensors, including CO2 sensors for HVAC, ozone sensors, and airflow sensors.
This sensor type is gaining new attention post-pandemic because its functionality influences how an HVAC system impacts pollutant levels, health and productivity, and ventilation and purification strategies.
- Pollutant levels: IAQ sensors constantly monitor the concentration of harmful substances such as volatile organic compounds (VOCs), CO2, and particulate matter. VOCs can originate from cleaning supplies, paints, or other building materials, while CO2 levels increase with occupancy. High particulate matter levels can exacerbate pre-existing respiratory conditions.
- Health and productivity: Inadequate air quality can affect building occupants in various ways, from feeling tired to unwell. Those exposed to poor air may experience headaches, dizziness, and fatigue. Efficient monitoring and control of air quality can mitigate such risks to health.
- Ventilation and purification strategies: Post-pandemic, IAQ sensors have become more vital than ever. They advise us on ventilation and air-purification strategies, guarantee sufficient air exchange, and reduce the spread of pathogens. Improved ventilation and purification, directed by accurate IAQ data, will aid in creating safer and healthier indoor environments.
Traditional vs Advanced IAQ Sensors
Traditional IAQ HVAC sensors predominantly detect basic pollutants, such as CO2 and larger particulate matter. They usually use chemical or optical methods for detection, which are often less sensitive to a broader range of pollutants and may not provide real-time data.
The limited scope of traditional IAQ sensors in detecting finer particulate matter and a narrow range of VOCs may lead to inadequate air quality control. Such a shortfall may result in worse health outcomes, reduced comfort for occupants, and less effective ventilation strategies.
Advanced IAQ sensors signify a momentous advancement in HVAC system functionality. These contemporary sensors utilize sophisticated technology to detect a broader range of pollutants, including various VOCs and finer particulate matter, with increased accuracy and in real-time.
Their combination with smart HVAC systems leads to dynamic adjustments in air quality conditions, guaranteeing optimal ventilation and air purification. Advanced sensors improve indoor environments, enhance user comfort, and improve overall building sustainability.
Optimizing HVAC System Design
If all the components of an HVAC system are not working efficiently together, performance will be sub-standard. Working together, advanced sensor technology (irrespective of type) will generate a collaborative approach to getting the most from the HVAC system.
Temperature sensors regulate heating and cooling to correspond with desired settings, while humidity sensors preserve good moisture levels for comfort and health. IAQ sensors identify pollutants and ensure clean air; pressure sensors maintain optimal airflow and system performance.
When these HVAC sensors function in concert, they optimize energy use and guarantee a reliably comfortable and healthy indoor environment.
Optimizing a building’s HVAC with advanced sensor technology is not just about adding more sensors to a system. There is a skill to HVAC advanced sensor integration for the best performance possible.
With HVAC temperature location, this means considering influences such as the space’s layout, occupancy patterns, and outside environmental influences. With this level of integration, HVAC systems can acclimatize in real time to changing conditions and uphold optimal air quality and comfort while maximizing energy efficiency.
