GaGe high-performance digitizers are best known for their ability to maintain the maximum effective number of bits (ENOB) over a wide signal frequency range with quality signal conditioning and signal fidelity features.
The high-speed PCIe and PXIe digitizers offer the best combinations of high sampling speeds with 8-bit, 12-bit, 14-bit, and 16-bit high-resolution rates, large sampling memory options, and high-speed data streaming capabilities. These digitizers offer sampling rates of up to 6 GS/second and extremely deep onboard acquisition memory of up to 16 GB.

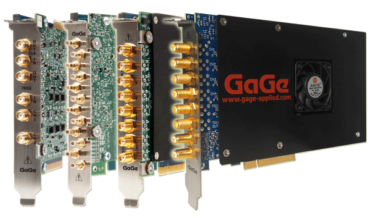

16-Bit High-Speed A/D Digitizers
Image Credit: GaGe
GaGe 16-bit resolution digitizer models divide the input voltage range into 65,536 distinct digitization levels, which results in a 4-fold increase in the delectability limit compared to the 16,384 levels of a 14-bit resolution digitizer model.
GaGe 16-bit digitizers offer sampling rates of up to 1 GS/second, input bandwidths of up to 600 MHz, deep onboard sample memory of up to 8 GS (16 GB), and genuine ENOBs of up to 12.2 bits. They are also available with 2, 4, or 8 digitizing channels.
14-Bit High-Speed A/D Digitizers
Image Credit: GaGe
With 16,384 different digitization levels created by GaGe 14-bit resolution digitizer models instead of the 4,096 levels of a 12-bit resolution digitizer model, the delectability limit is increased by a factor of 4.
GaGe 14-bit digitizers feature sampling rates of up to 200 MegaSamples per second and are available with 2, 4 or 8 digitizing channels, input bandwidths of up to 1.2 GHz, deep onboard sample memory up to 8 GS (16 GB), and true ENOBs of 11 bits.
12-Bit High-Speed A/D Digitizers
Image Credit: GaGe
GaGe 12-bit resolution digitizer products convert the input voltage range into 4,096 separate digitization levels, increasing the delectability limit from 256 levels of an 8-bit resolution digitizer model by a factor of 16.
GaGe 12-bit digitizers come in 1, 2, or 4 digitizing channel configurations, with input bandwidths up to 700 MHz, deep onboard sample memory up to 8 GS (16 GB), and real ENOBs up to 10.3 bits. They also have sampling rates of up to 2 GigaSamples per second.
8-Bit High-Speed A/D Digitizers
Image Credit: GaGe
GaGe 8-bit resolution digitizer models offer the highest possible sampling rates at up to 4 GigaSamples per second with 1 or 2 digitizing channels, input bandwidths of up to 1.5 GHz, deep onboard sample memory up to 16 GS (16 GB), and true ENOBs of over 7 bits.
GaGe Embedded Product Volume Support Program
By combining reliable, high-quality data acquisition solutions with the strategic OEM embedded product volume support program, users gain valuable time-to-market and save tens of thousands of dollars on development:
Image Credit: GaGe
- No additional charge for product evaluation and SDKs for qualification and initial development
- Volume discount pricing
- Negotiated factory and/or on-site technical support, including custom hardware and software development
- Product safety stock pool program to ensure a specified quantity of product is kept on stock and ready-to-ship basis
- Custom engineering change order control of supplied product
- Provided software tools on a site-wide level license basis
- No charge for support through the evaluation period

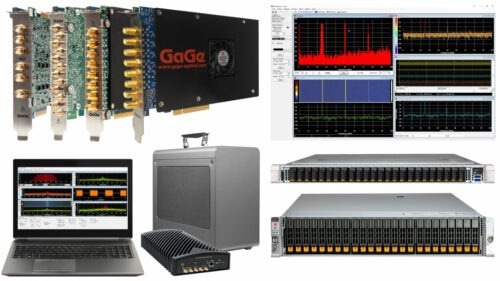

GaGe Data Acquisition Solutions
GaGe is a global industry leader in high-speed data acquisition solutions, with a vast portfolio of the highest-performance digitizers, PC oscilloscope software, powerful SDKs for custom application development, and turnkey integrated PC-based measurement systems used in applications like:
- Communications
- Optical Coherence Tomography (OCT)
- Mass Spectroscopy
- Ultrasound Imaging
- Time of Flight (TOF)
- Life Sciences
- Particle Physics
- Wideband Signal Analysis
- RADAR Design and Test
- Signals Intelligence (SIGINT)
- Ultrasonic Non-Destructive Testing (NDT)
- LIDAR Systems
