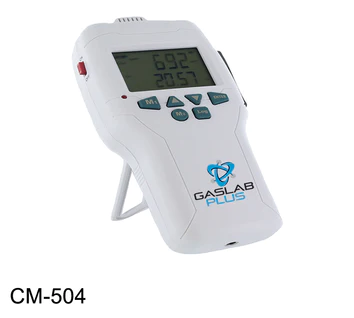

CM-504: CO2 and CO Handheld Gas Detector

With the ability to log data for later analysis, the Carbon Dioxide and Carbon Monoxide Handheld Gas Detector measures CO and CO₂ concentrations in real time.

The user can measure ambient gas levels using data that is displayed and gain indication through visual and audible alarm settings with long-term data storage.

Image Credit: CO2Meter

Features

• NDIR/EC technology to measure CO₂ and CO concentrations
• CO₂, CO, PM2.5, PM10, Temp, R/H%, and Baro
• Large LCD for easy readability
• Audible Alarm
• Data Logging with 16 GB SD Card
• Li-ion rechargeable batteries included

About CO2 Storage Safety Codes

According to the NBIC, NFPA, or IFC regulations, a fixed/wall-mounted, hard-wired alarm is necessary for CO₂ safety monitoring, and this device does not meet those requirements.

Applications

• Safety, and many others
• Agriculture
• Food and Beverage
• Scientific
• Brewing
• Medical

Specifications

• Dimensions: 204.5×91.7×49.6 mm (8.1×3.6×2 inch)
• Measures: CO₂, CO, PM2.5, PM10, temperature, %R/H, and Baro
• CO₂ Measurement range: 0~9999 ppm
• Sensing method: NDIR and EC
• CO Measurement range: 0~1,000 ppm
• PM2.5,10 Measurement range: 999 ug/m³
• Temperature: 0~50 °C, ±1 ℃
• Battery Life: Tested to 24+ hours
• Power Supply: 3 Rechargeable Batteries - Li-ion 18650 3.7 V
• CO₂ Accuracy: ± 50 ppm, ± 5% of reading (0~5,000 ppm)
• CO Accuracy: ±5%~±10%
• Weight: 305 g (without batteries)
• PM2.5,10 Accuracy: ±15% or ±15 μg/m³ (whichever is greater)
• Life Span: NDIR: >15 years, EC < 1 year

Includes

• Three (3) Li-ion rechargeable batteries

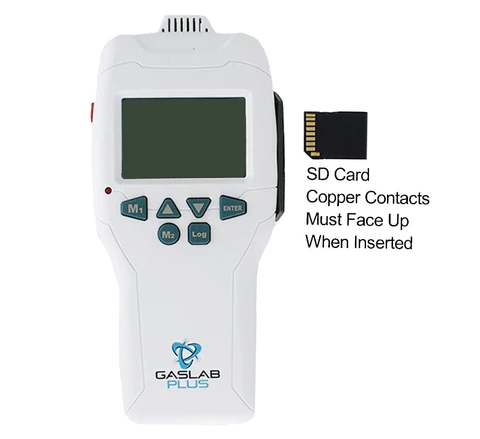

• SD Card (16 g), Data Logging Capability
• USB Charging Cable
• CO2, CO, PM2.5, PM10 Gas Detector
• Manual

Software

Data logs are stored on a micro SD card by this device. This device is incompatible with the GasLab^® Software.

Accessories

• BAT-18650 - EBL 18650 3.7 V Li-ion Rechargeable Batteries
  • All CM-500 series handheld gas detectors can be used with EBL Intelligent Batteries, which offer fast charging and are upgraded ETL certified (the device requires three)

• EBL Universal Battery Charger for 3.7 V Rechargeable Batteries
  • Users can charge lithium batteries with the EBL Universal Battery Charger when plugged into a USB outlet. Additionally, the battery charger shows the charge levels clearly by turning green when the battery is fully charged.
