The BM25 from Oldham-Simtronics, part of Teledyne Gas & Flame Detection, is a rugged multi-gas area monitor designed to ensure safety in hazardous environments. Around 10 years after the introduction of the first-generation BM25, the monitor continues to be the tried and trusted go-to-solution within the transportable gas detection market.
Testimony to this fact can be provided by Al Masaood Oil & Gas, which following its formation in 1971, became one of the first oil and gas suppliers and contractors in the United Arab Emirates (UAE). Al Masaood has supplied around 800 BM25 portable gas detectors into a host of onshore and offshore projects, including 200 of the latest-generation wireless models. The company acquires the units directly from Oldham-Simtronics.
Al Masaood chose the BM25 because we can trust and depend on its performance in harsh environments in which we operate. The BM25’s robust construction and intelligent design makes it one of the best detectors to be deployed in our applications where area monitoring is a critical part of the safety system.
Ammar Maarouf, Department Manager, Airloop & H2S Safety Services, Al Masaood Oil & Gas
The BM25 was designed for team protection or area surveillance, and is ideally suited to perimeter monitoring, rig overhauls, and mobile or short-term work where fixed detection systems are not practical. Providing the capability to monitor one-to-five gases simultaneously, the BM25 packs the benefits of a fixed area monitor into a rugged, user-friendly and transportable instrument; a factor that has long-appealed to Al Masaood.
With over 900 employees, Abu Dhabi-based Al Masaood Oil & Gas provides advanced energy services into upstream and downstream operations. Their Air Loop & H2S Safety business unit also supplies, calibrates and services various application-specific products across the UAE, including portable gas monitors, for both sales-based and rental-based projects.
Provide us with a challenge and we'll find the right solution. Portable gas detection and area monitoring has been a key competency for many years, and here we rely on various solutions from Teledyne Gas & Flame Detection including the PS200 multi-gas detector, as well as the BM25. The standard BM25 can send alarms via alarm transfer cables, however, the latest-generation BM25 Wireless sends alarms, faults and readings using a 2.4GHz wireless signal. This set-up can create a safety perimeter around a detected atmospheric hazard, or transmit a manually initiated emergency signal over a wide area.
Ammar Maarouf, Department Manager, Airloop & H2S Safety Services, Al Masaood Oil & Gas
Up to five gases can be monitored simultaneously using the BM25; interchangeable sensors are available for AsH3, CO, CO2, H2, HCl, HCN, NO2, NH3, O2, PH3, SiH4 and SO2. When the BM25 detects a hazardous level of gas, the top-mounted beacon sends a flashing, bright signal in all directions while emitting a powerful, 103dB siren alarm.
Powered by a NiMH battery pack, the BM25 multi-gas monitor offers up to 170 hours of continuous run time. Other standard features include STEL (short-term exposure limit) and TWA (time-weighted average) values, as well as a data-logging capacity of more than four months.

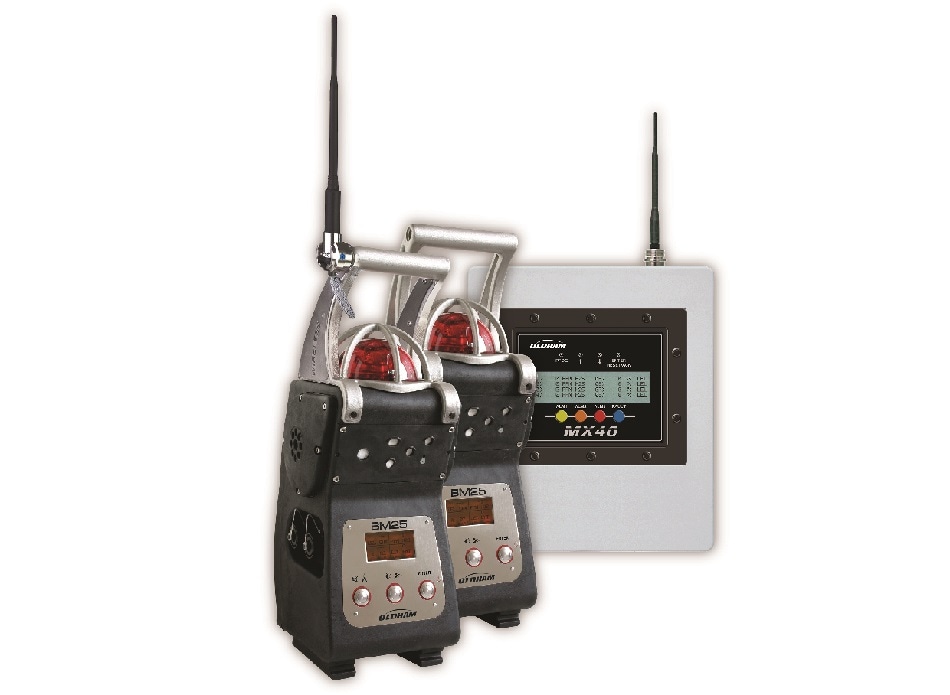

The BM25 Wireless offers networking and communication to Oldham-Simtronics MX40 controller, which centralises the data and can display up to 32 measurements in real time. When a BM25 signals an alarm, the MX40 also goes into alarm mode and can, for example, control internal relays and order other monitors to transmit the alarm as well. The control panel displays real-time gas concentrations, field device status, battery levels, network RF signal quality and fault diagnostic conditions.
Oldham-Simtronics BM25 Wireless can be used as a stand-alone monitor or linked into a mesh network to provide gas detection over a large area. The mesh network allows peer-to-peer connection with all other units in the network to send, receive and relay data. As a result, detectors can communicate around obstructions and alter communication paths should a monitor be removed for recharging or servicing. A total of 30 BM25 Wireless units may be meshed together in a single network, while up to 16 independent networks can co-exist without interference.
To date we’ve supplied around 200 BM25 Wireless gas detectors. In fact, I think we were the first in our region to offer them. Our customers love the simplicity and the speed in which they can be deployed to keep workers safe. We have used the BM25 and BM25 Wireless for so many years because they offer five-gas capability and are compact and extremely reliable in comparison with competitor units. We also like the excellent connectivity of the BM25 Wireless unit, which offers added-value for our clients as there is no need to use transfer cables for the alarm. A good stock of detectors is maintained at Al Masaood so that we can respond quickly to customer requirements.
Ammar Maarouf, Department Manager, Airloop & H2S Safety Services, Al Masaood Oil & Gas
With 14,000 units in operation worldwide, BM25 multi-gas detectors are technologically capable and highly proven device. This latter point is particularly important in the safety-critical oil and gas applications, where any failure to detect dangerous gases could have disastrous consequences.
