In a recent article published in Frontiers in Quantum Science and Technology, researchers presented an in-depth study on the use of diamond quantum sensors—specifically those based on nitrogen-vacancy (NV) centers—for monitoring electric vehicle (EV) batteries.

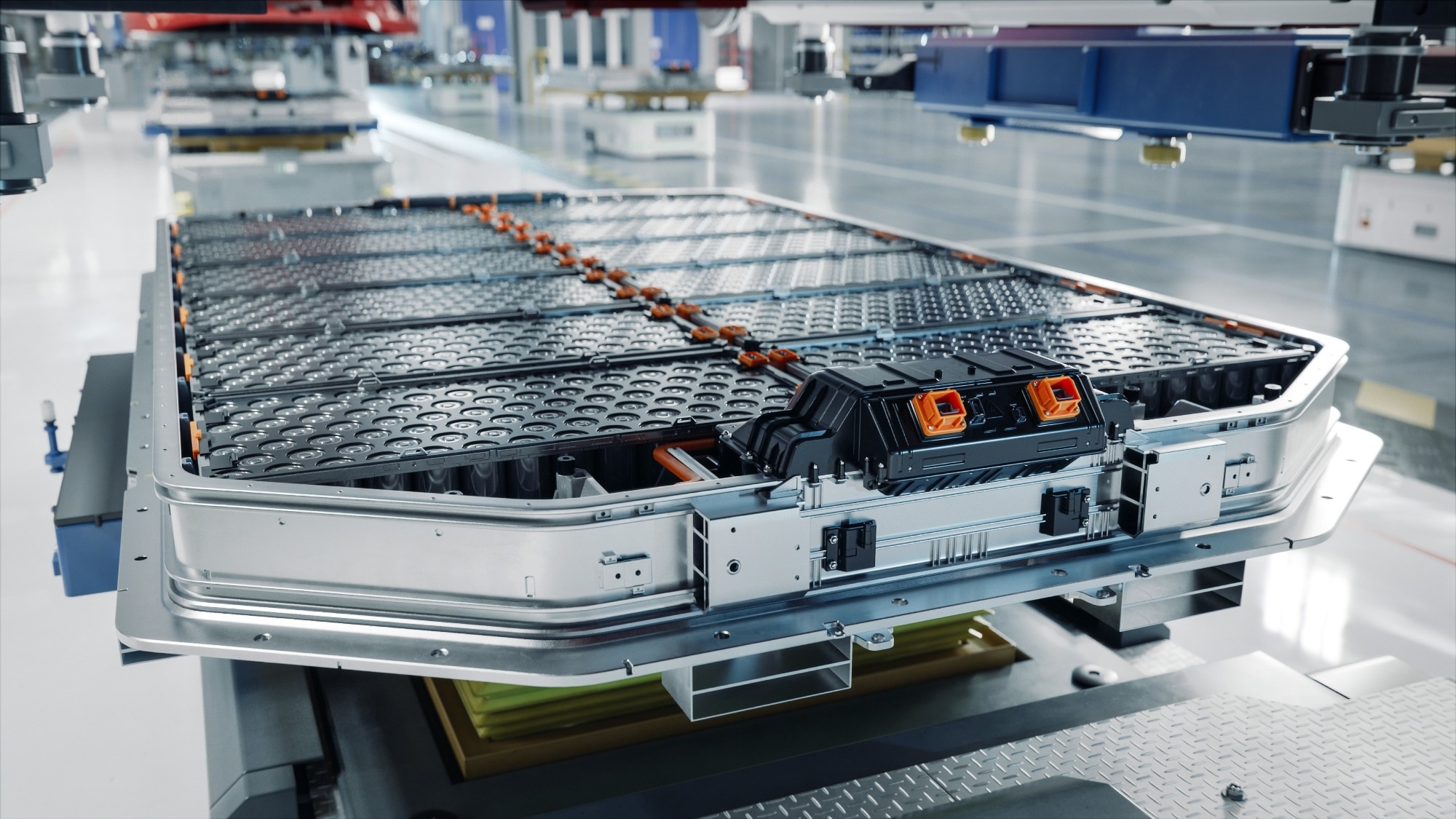

Study: A wide dynamic range diamond quantum sensor as an electric vehicle battery monitor. Image Credit: IM Imagery/Shutterstock.com
This study addresses the challenges arising from misalignment between the NV-axis of the diamond sensor and the magnetic fields generated by the current flowing through the battery system. The authors aim to develop methods to quantify and minimize this misalignment, improving the accuracy of temperature and magnetic field measurements.
Background
Diamond quantum sensors have gained considerable attention due to their unique properties, including high sensitivity to magnetic fields and the ability to operate at room temperature. The NV centers in diamond are particularly promising for applications in magnetometry, as they can detect minute changes in magnetic fields with high spatial resolution.
However, the effectiveness of these sensors can be compromised by misalignment between the sensor's NV-axis and the external magnetic fields. This misalignment can lead to inaccuracies in the measurements, which is critical when monitoring the performance and safety of EV batteries. Previous studies have demonstrated the potential of diamond magnetometers in various applications, but the specific challenges related to alignment in the context of battery monitoring have not been thoroughly addressed. The authors build upon existing literature to explore these challenges and propose solutions.
The Study
In this study, the researchers employed a systematic approach to investigate the effects of misalignment on the performance of diamond quantum sensors. The diamond sensor used in the experiments was a high-pressure, high-temperature (HPHT) type Ib crystal specifically designed to contain a controlled concentration of NV centers.
The sensor was subjected to a series of tests to measure its response to varying magnetic fields while simultaneously monitoring the temperature of the busbar, which is a critical component in EV battery systems. The researchers developed a method to quantify the misalignment between the NV-axis and the magnetic fields, allowing for a detailed analysis of how this misalignment affected the resonance frequency of the sensor.
The data collected during the experiments was analyzed using least-squares fitting techniques to derive coefficients that describe the relationship between the busbar current and the resonance frequency changes. This methodology enabled the authors to assess the linearity of the sensor's response and to implement compensatory measures to improve measurement accuracy.
Results and Discussion
The study revealed important insights into how misalignment impacts the performance of diamond quantum sensors. The researchers found that even slight misalignments could cause significant deviations in the resonance frequency, which in turn compromised the sensor's ability to accurately measure magnetic fields.
By quantifying the degree of misalignment, the team implemented corrective measures that improved the sensor’s linearity. Correcting for the transverse magnetic field effect led to a notable increase in measurement accuracy, especially within the operational current range of 20 to 1,000 A. These findings highlight the critical role of precise alignment when deploying diamond quantum sensors for practical applications, particularly in EV battery monitoring.
The article also places these findings within the broader context of quantum sensing technologies. The authors emphasize the potential of diamond magnetometers to revolutionize electric vehicle system monitoring, citing key advantages over conventional sensors. The ability to operate at room temperature, combined with the high sensitivity of NV centers, makes these sensors especially well-suited for real-time monitoring applications.
Conclusion
In conclusion, this study represents a significant advancement in diamond quantum sensing, particularly for monitoring EV batteries. The researchers successfully addressed the challenge of misalignment between the NV-axis of diamond sensors and external magnetic fields, offering a robust methodology to quantify and correct these misalignments.
The findings demonstrate that, with precise alignment and compensation techniques, diamond quantum sensors can achieve exceptional accuracy in measuring magnetic fields—an essential factor for ensuring the safe and efficient operation of EV batteries.
Beyond electric vehicles, the implications of this work suggest that similar techniques could improve the performance of a range of quantum sensing technologies. As the demand for precise monitoring solutions rises in the sustainable energy sector, this research offers valuable insights that could drive future innovations in quantum sensing applications.
Journal Reference
Hatano Y., Shin J., et al. (2024). A wide dynamic range diamond quantum sensor as an electric vehicle battery monitor. Frontiers in Quantum Science and Technology 3. DOI: 10.3389/frqst.2024.1432096, https://www.frontiersin.org/journals/quantum-science-and-technology/articles/10.3389/frqst.2024.1432096/full
