Submersible tank gauging level transmitters from instrumentation specialist Impress Sensors & Systems Ltd have been specified for measuring tank fuel levels in remote power generation and telecom sites across the world.
For plant operators who need to monitor remote installations such as power generators, vehicles, marine vessels, telecom sites and heavy machinery, the IMTG range of submersible level gauging transmitters from Impress Sensors reliably measures the level of diesel fuel in storage tanks that supply power generators located in remote sites.
Manufactured in the UK by Impress Sensors, the IMTG range of transmitters is designed for continuous submersion in liquids such as water, oils and fuels. The transmitters are ideally suited to applications in small (typically 1 or 2m depth) tanks or containers, where conventional mechanical level switches and sensors are not suitable because of reliability issues and a higher degree of level ‘control’ and measurement is required.

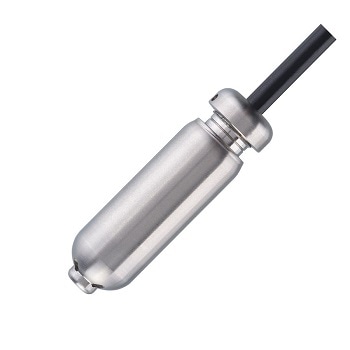

The IMTG transmitters use a piezoresistive, silicon pressure sensing technology and a stainless steel diaphragm, which provide excellent stability, repeatability and resolution. The sensor housing is made from stainless steel, making it ideal for reliable, repeatable hydrostatic level measurement. The sensors are available in nominal pressure ranges from 0.5mWG to 10mWG.
For remote telecom sites that are typically unmanned, network operators need to monitor the fuel levels in real time for fuel consumption rates and for security reasons, i.e. fuel theft detection. For these operators, the IMTG transmitters are submerged in the diesel fuel where they continuously measure the tank level. This data can then be used to generate fuel monitoring reports, which are then used to analyse trends, detect any anomalies and even select a better refueling date in order to reduce frequency of refuels, which reduces operational costs.
Sam Drury, Sales & Marketing Director at Impress Sensors & Systems
As well as the standard options, the transmitters can also be custom engineered by Impress to suit specific applications. Customers can choose from a wide range of sensor options, including pressure ranges and engineering units, output types, cable lengths, cable materials, O-ring seal materials, static accuracy and thermal accuracy.
For diesel fuel storage tank level monitoring, the sensors are supplied with a self-flushing nose cone to provide protection against the sediment in the diesel fuel tanks. The cable material is FEP rather than the standard PVC. The sensors are also calibrated and temperature-compensated for changes in the specific gravity of the diesel when it is subjected to hotter climates.
Sam Drury
The IMTG sensors are supplied with a traceable serial number and calibration certificate. Operating (media) temperatures are from -20°C to +60°C in non-freezing media.
For more information on the IMTG range of submersible tank gauging level transmitters, please visit the website at www.impress-sensors.co.uk or call the sales team on 01635 291 600.
