In an article published in the journal Energies, researchers have introduced a novel way to optimize the performance of solar photovoltaic (PV) systems. This study aims to enhance the efficiency and accuracy of Maximum Power Point Tracking (MPPT) in PV systems by utilizing the Red-Tailed Hawk Algorithm.

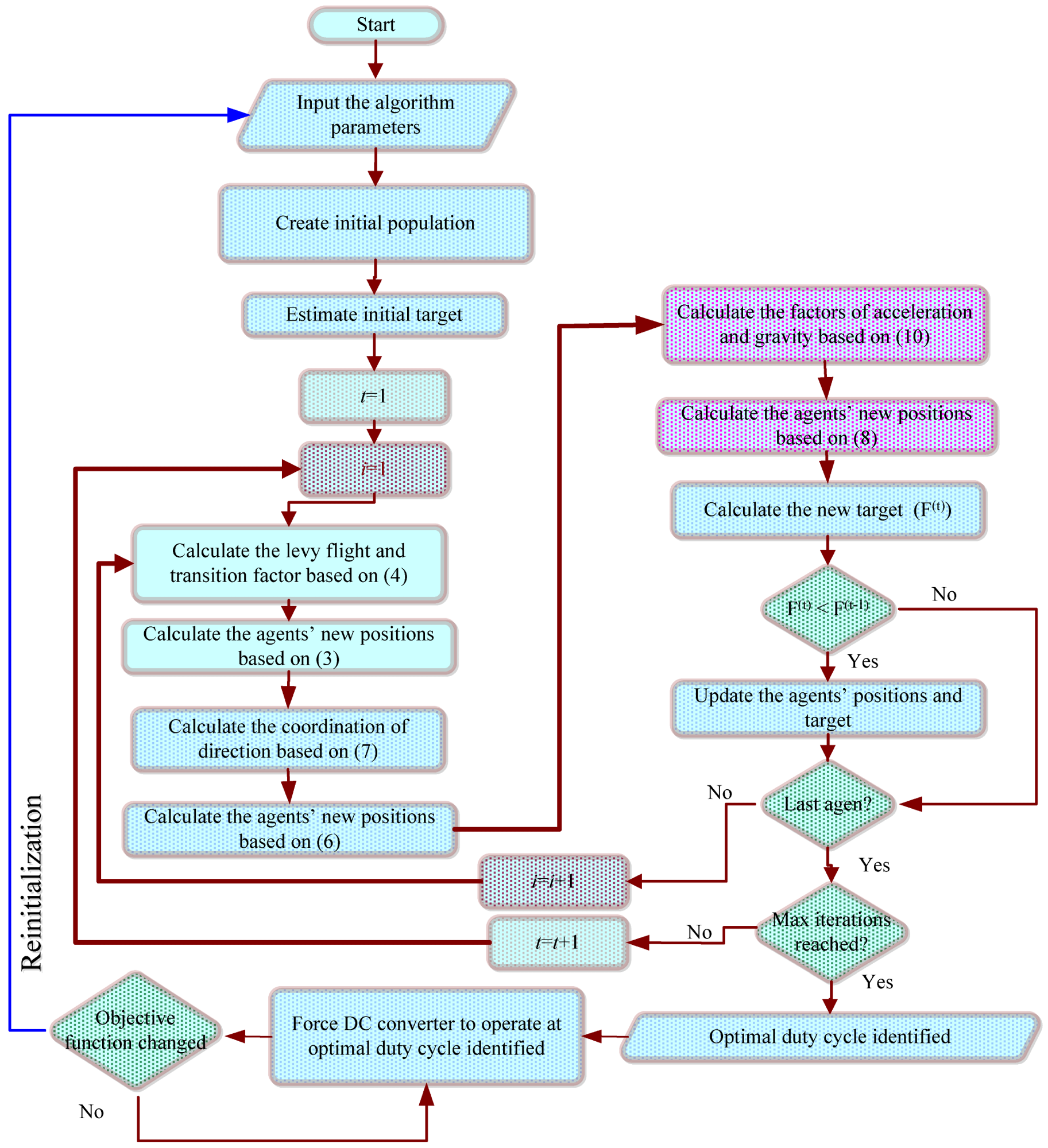

RTH-flowchart-based global MPPT. Image Credit: https://www.mdpi.com/1996-1073/17/14/3391
Background
The need for efficient and reliable MPPT techniques in PV systems has become increasingly crucial due to the growing demand for renewable energy sources. Traditional MPPT methods often face challenges in optimizing power generation under varying environmental conditions, such as partial shading and temperature fluctuations.
In scenarios with partial shading, PV systems exhibit multiple maximum power points (MPPs) on their power-voltage curves, complicating the tracking process for conventional MPPT algorithms. This complexity results in reduced efficiency and suboptimal power output, highlighting the need for advanced MPPT solutions capable of accurately identifying and tracking the global MPP amidst local MPPs. The proposed Single-Sensor Global MPPT system interconnected with a DC link using the Red-Tailed Hawk Algorithm addresses this critical need by offering a novel approach to optimizing PV system performance under shading conditions.
The Current Study
The methodology employed in the study involved the implementation of the Single-Sensor Global MPPT system to optimize the performance of PV systems. The experimental setup consisted of a PV system subjected to different shading scenarios to evaluate the algorithm's efficacy under varying conditions.
To begin, the PV system's power-voltage curve was analyzed to identify multiple MPPs that occur during shading conditions. The Red-Tailed Hawk Algorithm was then integrated into the MPPT system to accurately track the global MPP amidst the presence of local MPPs, ensuring optimal power generation.
An analysis of variance (ANOVA) was conducted to assess the system's performance across different shading scenarios. This statistical analysis allowed for the comparison of power output variations under various levels of shading, providing insights into the algorithm's stability and efficiency in capturing the global MPP.
Furthermore, a Tukey Honest Significant Difference (Tukey HSD) post hoc test was performed to validate the ANOVA results and determine the statistical significance of the algorithm's performance improvements. The Tukey HSD analysis enabled a detailed comparison of power output values under different shading conditions, highlighting the algorithm's ability to consistently identify and track the global MPP.
Additionally, simulations and real-time experiments were conducted to validate the algorithm's effectiveness in maximizing power output and mitigating the impact of shading on PV system efficiency. The experimental data collected during the study were analyzed to quantify the improvements achieved by the Single-Sensor Global MPPT system utilizing the Red-Tailed Hawk Algorithm.
Results and Discussion
The study showcased the efficacy of the Single-Sensor Global MPPT system, which is enhanced by the Red-Tailed Hawk Algorithm, in optimizing PV system performance under different shading conditions. The ANOVA results indicated significant power output improvements when employing the algorithm across various shading scenarios.
The algorithm demonstrated a consistent ability to identify and follow the global maximum power point, thereby boosting power generation efficiency. A comparative analysis of power outputs under diverse shading scenarios highlighted the algorithm's adaptability in modifying the PV system's operational point to optimize energy production.
Further statistical validation came from the Tukey HSD post hoc test, which corroborated the ANOVA findings and underscored the statistical significance of the performance enhancements attributed to the algorithm. This detailed comparison affirmed the algorithm's precision in pinpointing the global MPP and maximizing system efficiency.
Additionally, both simulations and real-world experiments underscored the algorithm's robustness in lessening shading's impacts on PV system performance. The algorithm’s capability to accurately track the global MPP amidst various local MPPs demonstrated its reliability and stability under different environmental conditions.
Overall, the results emphasized the algorithm's advantages over traditional MPPT techniques, especially in scenarios of partial shading where conventional methods often fail to distinguish between local and global MPPs. By minimizing sensor requirements and improving tracking accuracy, the Red-Tailed Hawk Algorithm-based MPPT system has proven to be both cost-effective and dependable in maximizing power output in PV systems.
Conclusion
In conclusion, the study highlights the effectiveness of the Single-Sensor Global MPPT approach integrated with the Red-Tailed Hawk Algorithm for improving the efficiency and stability of PV systems. The research findings validate the algorithm's capability to optimize MPPT under varying shading conditions, showcasing its potential for enhancing the overall performance of solar energy systems.
Journal Reference
Almousa M.T., Gomaa M.R., et al. (2024). Single-Sensor Global MPPT for PV System Interconnected with DC Link Using Recent Red-Tailed Hawk Algorithm. Energies 17(14):3391. DOI: 10.3390/en17143391, https://www.mdpi.com/1996-1073/17/14/3391
