In a recent article published in the journal Nano-Micro Letters, researchers presented a novel gas sensing platform that leverages the properties of tin dioxide (SnO2) nanoparticles integrated with micro-light-emitting diodes (μLEDs) for real-time gas detection.
This study focuses on the development of a tunable gas sensing system that operates under blue light illumination, enhancing the sensitivity and selectivity of the sensors towards specific gases, particularly nitrogen dioxide (NO2). The integration of noble metals with SnO2 nanoparticles is also investigated to improve the performance of the gas sensors.

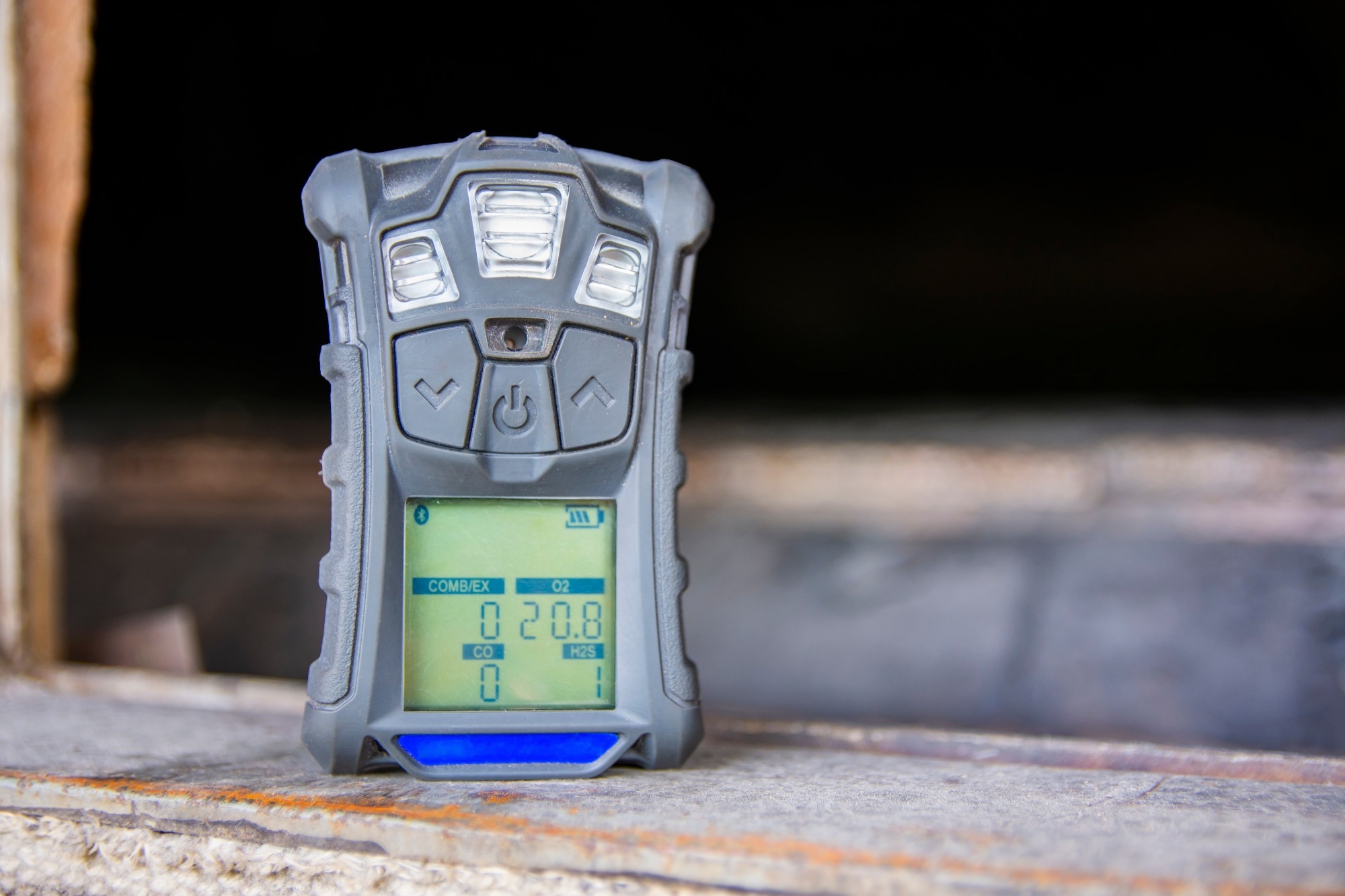

Study: Real-Time Tunable Gas Sensing Platform Based on SnO2 Nanoparticles Activated by Blue Micro-Light-Emitting Diodes. Image Credit: Tum ZzzzZ/Shutterstock.com
Background
Gas sensors play a crucial role in detecting harmful gases in the environment, and their effectiveness is often determined by the materials used in their construction. SnO2 is a widely studied semiconductor material known for its excellent gas sensing properties, including high sensitivity and fast response times. However, the performance of SnO2-based sensors can be further enhanced through the incorporation of noble metals such as gold (Au), palladium (Pd), and platinum (Pt).
These metals can modify the electronic properties of SnO2, leading to improved gas adsorption and enhanced catalytic activity. The use of μLEDs as a light source in gas sensing applications is a relatively new approach that allows for precise control over the illumination conditions, potentially leading to better sensor performance. The article aims to explore the synergistic effects of these advancements in creating a highly efficient gas sensing platform.
The Current Study
The research employed a systematic approach to fabricate the μLED-integrated gas sensor array. The SnO2 nanoparticles were synthesized using a hydrothermal method, which involved dissolving tin chloride in deionized water and subjecting the solution to high temperatures in a Teflon-lined autoclave.
Following synthesis, the SnO2 nanoparticles were characterized to confirm their size and structural properties. The μLEDs were fabricated using standard photolithography techniques, with p-type metal contacts deposited via e-beam evaporation. An insulation layer of silicon dioxide (SiO2) was added to protect the sensor electrodes, which were then exposed for gas detection.
To evaluate the gas sensing performance, the researchers prepared a slurry of SnO2 nanoparticles mixed with a terpineol-based ink, which was coated onto the sensor electrodes. The sensors were subjected to various concentrations of NO2 gas under controlled conditions, and their resistance was measured using a source meter. The response of the sensors was analyzed by exposing them to repetitive pulses of NO2 while monitoring their resistance changes. The detection limits and response times were also calculated to assess the sensors' performance.
Results and Discussion
The results demonstrated that the μLED-integrated gas sensors exhibited remarkable sensitivity to NO2, with a detection limit as low as 200 parts per billion (ppb). The sensors showed a linear response to varying concentrations of NO2, indicating a strong correlation between gas concentration and sensor response. The study highlighted the importance of blue light illumination in enhancing the sensing capabilities of the SnO2 nanoparticles. Under blue light, the sensors displayed improved stability and reliability, maintaining consistent resistance values even after multiple exposure cycles.
The incorporation of noble metals into the SnO2 nanoparticles further enhanced the gas sensing performance. The study found that the presence of Au, Pd, and Pt significantly improved the response times and selectivity of the sensors towards NO2.
The noble metals facilitated charge transfer processes and increased the active sites available for gas adsorption, leading to faster and more pronounced sensor responses. The findings suggest that the combination of SnO2 with noble metals and μLEDs creates a powerful platform for gas detection, capable of operating effectively under low power conditions.
The article also discusses the potential applications of the developed gas sensing platform in various fields, including environmental monitoring, industrial safety, and healthcare. The ability to detect low concentrations of harmful gases in real-time is crucial for ensuring public safety and compliance with environmental regulations. The tunable nature of the sensor, enabled by the μLEDs, allows for adaptability to different gas types and concentrations, making it a versatile tool for various applications.
Conclusion
In conclusion, the study successfully demonstrates the development of a real-time tunable gas sensing platform based on SnO2 nanoparticles integrated with μLEDs. The research highlights the significant improvements in sensitivity and selectivity achieved through the incorporation of noble metals and the use of blue light illumination.
The findings indicate that this innovative approach can lead to the creation of highly efficient gas sensors capable of detecting low concentrations of gases such as NO2. The potential applications of this technology are vast, ranging from environmental monitoring to industrial safety, underscoring the importance of continued research in this area. Future work may focus on optimizing the sensor design and exploring additional gas types to further enhance the capabilities of this gas sensing platform.
Journal Reference
Nam G.B., Ryu J.E., et al. (2024). Real-Time Tunable Gas Sensing Platform Based on SnO2 Nanoparticles Activated by Blue Micro-Light-Emitting Diodes. Nano-Micro Letters 16, 261. DOI: 10.1007/s40820-024-01486-2, https://link.springer.com/article/10.1007/s40820-024-01486-2
