A new study just made a big leap in Structural Health Monitoring (SHM): researchers have found a way to drastically cut down the number of sensors needed to monitor thin-walled structures—without losing any accuracy. That’s a major win for engineers working in aerospace, naval, and energy industries, where real-time monitoring is critical and every extra sensor adds cost and complexity.

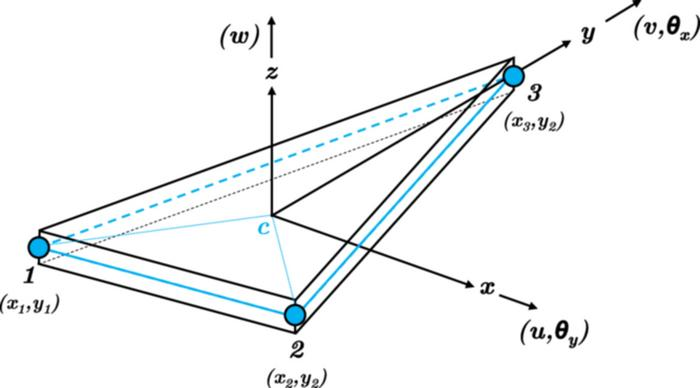

iKS3 defined in the physical coordinate system. Image Credit: International Journal of Mechanical System Dynamics
At the core of this breakthrough is a triangular inverse shell element, known as iKS3, which offers a highly accurate yet computationally efficient approach to monitoring thin-walled structures. Developed using discrete Kirchhoff theory, iKS3 enables precise reconstruction of displacement fields from strain data and has proven effective in detecting structural degradation in real time. Its practical benefits make it especially promising for use in aerospace, naval, and energy infrastructure.
Thin shell structures are favored in high-performance engineering for their excellent strength-to-weight ratio and ability to handle distributed loads. Yet, current SHM strategies for these structures are often limited by heavy computational demands and the need for dense sensor arrays. Conventional inverse methods, typically based on First Order Shear Deformation Theory (FSDT), are prone to issues like shear locking and slow convergence when applied to thin geometries. These drawbacks usually force engineers to rely on more sensors to offset computational inefficiencies.
To address these limitations, researchers from the National University of Sciences & Technology (Islamabad) and the University of Strathclyde (Glasgow) have developed the iKS3 element, as detailed in their article published in the International Journal of Mechanical System Dynamics. The iKS3 formulation is rooted in Classical Plate Theory (CPT), which removes the need to account for transverse shear strains—sidestepping the numerical challenges associated with shear deformation in thin shells.
Compared to FSDT-based inverse elements, iKS3 demonstrates stronger numerical stability and faster convergence, even under complex loading conditions. Validation studies across in-plane, out-of-plane, and general load cases consistently show that iKS3 outperforms inverse elements based on FSDT. This improved performance stems from its streamlined formulation, which excludes shear deformation terms—enhancing both computational speed and practical usability.
Beyond displacement reconstruction, the method also enables reliable detection and quantification of structural damage, using a well-established damage index derived from reconstructed strain fields. This dual capability—capturing both structural behavior and signs of degradation—positions iKS3 as a powerful tool for real-time SHM applications where speed and accuracy are critical.
The iKS3 element offers a computationally efficient path forward for monitoring thin-walled structures in real-time. By reducing the number of required sensors without compromising accuracy, it offers a practical solution for industry-scale monitoring systems.
Erkan Oterkus, Study Co-Author and Professor, University of Strathclyde
Supervised by Prof. Oterkus, the research directly tackles the core challenges in monitoring thin shell structures. By lowering the dependency on dense sensor networks and resolving numerical inefficiencies seen in traditional FSDT-based approaches, iKS3 presents a viable and scalable solution for real-world SHM. Its blend of computational efficiency and diagnostic precision marks a meaningful advancement in monitoring critical infrastructure across aerospace, naval, and energy industries.
Journal Reference:
Khalid, I., et al. (2025) Structural Health Monitoring of Thin Shell Structures. International Journal of Mechanical System Dynamics. doi.org/10.1002/msd2.12141
