Michell’s MDM300 portable dew-point hygrometer takes high-speed measurements of moisture in compressed air systems for surgical instruments and breathing air in spot-checks to ensure safety in hospitals.
Compressed air is used throughout hospitals for breathing air and instrument air. As with all compressed air systems, keeping moisture levels low is important to avoid corrosion, as well as reducing the risk of bacteria growing. Bacteria can easily grow in water vapour in compressed air lines, from where they may be released into the air where they can either grow on surfaces or be breathed in and possibly cause infection. The warm conditions of a hospital provide good conditions for bacteria to thrive if not kept clean and dry.
To remove the risk of bacterial growth, it is vital to keep the compressed air at a dew point of less than -46°C. The MDM300 portable hygrometer provides peace of mind that the moisture level in the compressed air is at, or below, this dew-point temperature by enabling spot-checks to be made at critical points in the system. Each MDM300 portable hygrometer undergoes a 13 point calibration over 10 days before leaving the factory. For reassurance of accuracy, the calibration certificates are traceable to the National Physical Laboratory (NPL) for the UK, or National Institute of Standards and Technology (NIST) for the USA - the key measurement standards authorities for these regions. Accredited calibrations to ISO 17025 are also available.

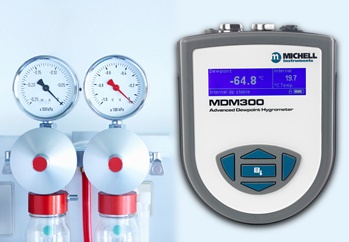

Michell’s MDM300 portable dew-point hygrometer.
The MDM300 is capable of taking measurements on breathing air or surgical air at line pressure with a simple sampling kit – the Medical Air kit. This allows the portable to connect directly to the bulkhead system with a standard 3/8” NGS probe. Because the MDM300 needs no waiting time between measurements – even to very low dew points – a large number of spot checks can be carried out each day. The instrument is easy to use, with an intuitive interface which needs the minimum of training to use. Crucially, the MDM300 gives ±1°C accuracy down to -60°C dew point, to give increased confidence in the safety of the compressed air.
About Michell Instruments
Michell Instruments Group is a worldwide leader in the field of moisture and humidity measurement solutions. With almost four decades experience, Michell designs and manufactures a wide range of sensors, instruments and customized systems capable of measuring dew-point, humidity and oxygen in applications and industries as diverse as compressed air, power generation, petrochemical, oil and gas, food processing and pharmaceutical. Michell’s innovative products make processes cheaper, cleaner, more energy efficient and safe.
The Group has multiple manufacturing locations across Europe with their international headquarters located in Ely, UK and a North America sales and service headquarters located in Rowley (MA). It has its own facilities in 10 countries with an extensive network of factory trained application and service engineers, subsidiaries and distributors stretching across 56 countries.
