Apr 27 2015
Toshiba Corporation's Semiconductor & Storage Products Company today announced the launch of gT4KB3h, a 13-megapixel (MP) BSI[1] CMOS image sensor with the optical format of 1/3.07 inch that offers makers of smartphones and tablets lower power consumption and a smaller chip size. Mass production shipments start today.

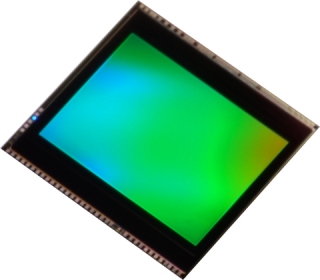

Toshiba: 13-megapixel BSI CMOS image sensor "T4KB3" for smartphones and tablets (Photo: Business Wire)
A new design methodology helps to reduce the power consumption of the new sensor to 200mW, or less at 30fps, 53% that of Toshibafs sensor now in mass production[2]. The chip is also in the worldfs smallest class of 13MP sensors[3], about 24% smaller than Toshibafs current 13MP sensor[2], and gT4KB3h is worldfs smallest class 13MP sensor [3].
The new sensor also deploys gBright Modeh technology that captures bright video images at high frame rates, realizing Full-HD video capture at 120fps equivalent.
The new CMOS sensor positions Toshiba to contribute to the realization of smaller form-factor camera modules and thinner mobile devices.
Applications
Key Features
- Low power circuit design reduces power consumption to 53% of Toshibafs current product
- In the worldfs smallest class of chip size for 13MP CMOS image sensors[3]
- Full-HD video capture at 120fps equivalent
- gBright Modeh technology that captures bright video images at high frame rates
|
Main Specifications
|
| Part Number |
|
T4KB3 |
| Output Pixels |
|
13 megapixels |
| Optical Format |
|
1/3.07 inch |
| Pixel Pitch |
|
1.12 micrometer BSI |
| Reference Module Size |
|
8.5 mm x 8.5 mm (Auto focus type)
6.7 mm x 6.7 mm (Fixed focus type)
|
| |
|
Output Frame Rate (Max.)
|
| Sensor output mode
(Output pixels)
|
|
Normal mode
(Progressive output)
|
|
Bright mode
(Interlace output )*
|
| 13M (4208 x 3120) |
|
30 fps |
|
| |
| 4K2K (4000 x 2160) |
|
30 fps |
|
| |
| Full-HD (Crop: 1920 x1080) |
|
60 fps |
|
120 fps |
| HD (Crop & binning: 1280 x 720) |
|
120 fps |
|
| |
|
* or after progressive conversion processing by external IC
|
Notes:
[1] BSI: Back Side Illumination.
[2] Compared with gT4K82h.
[3] Toshiba survey, as of April 2, 2015.
