Multipurpose beam load cells can be chosen to meet the precision requirements of users, and global approvals such as OIML, NTEP, ATEX, and FM are included as standard, allowing the load cells to be used globally in legal-for-trade and Ex weighing systems.
The sturdy, IP68/IP69k-rated designs and a full set of approvals allow for versatility and safety in a wide range of applications. The available capacities range from 5 kg to 4.4 tons, so users can weigh anything from small vessels to big tanks.
Image Credit: Mettler Toledo - International
Ingress Protection to Withstand Washdown
Image Credit: Mettler Toledo - International

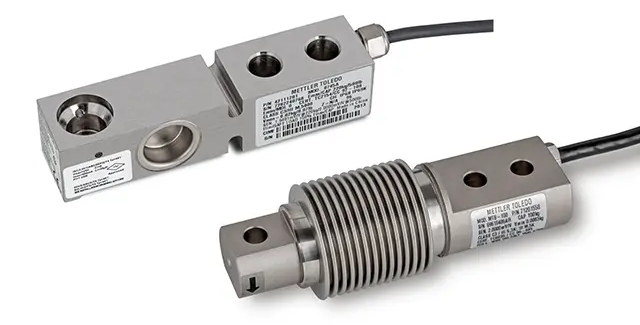

The MTB and 0745A multipurpose load cells are perfect for tough environments in food, pharmaceutical, and industrial applications because of their hermetically sealed (welded) architecture. Washdown applications can be tolerated by the IP68/IP69K protection class.
Accessories
Image Credit: Mettler Toledo - International

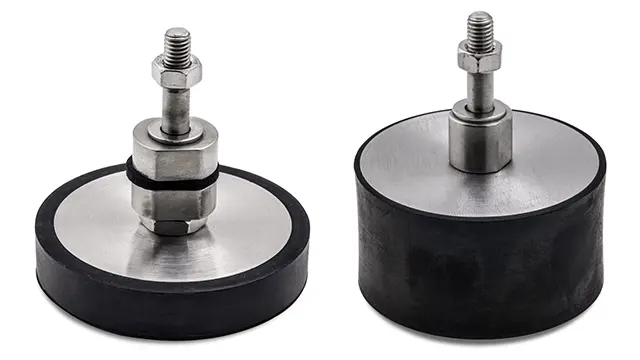

Base plates and load introductions are among the several accessories for load cells that are available to deal with shock and vibration.
The Foot Kit (FKT) can be utilized for convenience in floor scale applications with MTB, 0745A, or SLB515 load cells:
- Replaceable rubber pad
- Slight shock/vibration damping function
- Rocker-pin load introduction for high accuracy
- Copes with deck deflection
- Height adjustable
The Expansion and Vibration Kit (EVK) is suitable for top-mounting applications with 0745A and SLB515 load cells. It is a low-cost option with no restraints or safety features. It features a modest profile, allowing for easy integration into the existing weighing system.
