In a recent article published in the journal Microsystems & Nanoengineering, researchers presented a novel wearable microneedle patch designed for closed-loop diabetes management.
This system integrates a biosensor for real-time glucose monitoring with a micropump for insulin delivery, aiming to create a seamless and user-friendly experience for individuals with diabetes. The study emphasizes the importance of stability, rapid manufacturability, and the potential for personalized treatment in managing this chronic condition.

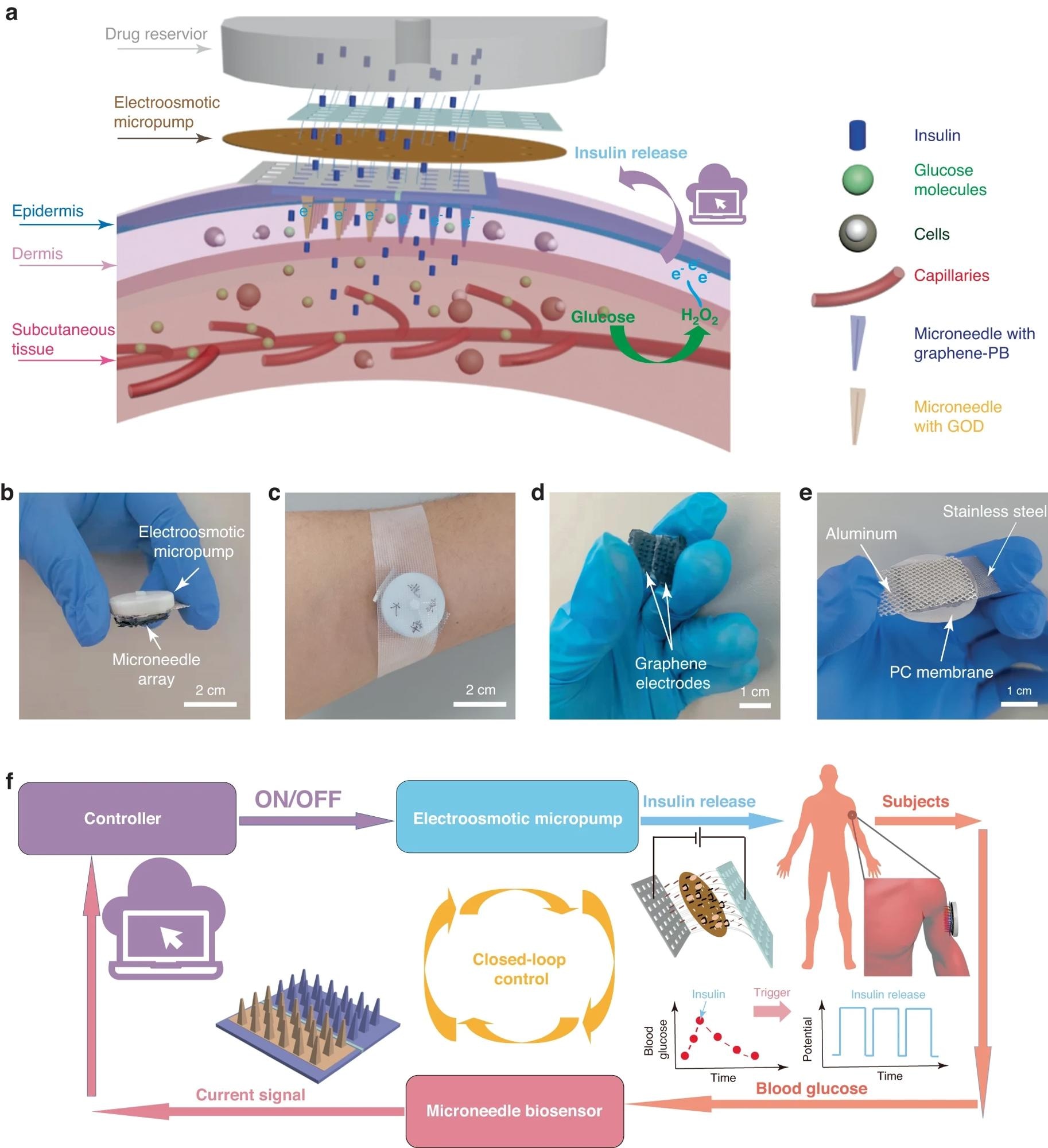

A schematic of the microneedle patch microneedle array on skin. b Photograph of the overall system. c Photograph of the patch applied on the arm of human subjects. d Photograph of a polystyrene (PS) microneedle-based sensor fabricated with two graphene-Prussian blue (PB) electrodes. e Photograph of an electroosmotic micropump. f Illustration of the overall system’s operating principle. Image Credit: https://www.nature.com/articles/s41378-024-00663-y
Background
Diabetes is a complex metabolic disorder characterized by chronic hyperglycemia resulting from defects in insulin secretion, insulin action, or both. The management of diabetes typically involves regular monitoring of blood glucose levels and the administration of insulin to maintain glycemic control.
Conventional methods, such as finger-prick blood tests and syringe-based insulin injections, can be invasive and inconvenient, leading to poor adherence among patients. Recent advancements in microfabrication and biosensor technology have paved the way for more sophisticated solutions, such as microneedle patches.
These patches offer a minimally invasive alternative for drug delivery and monitoring, potentially improving patient compliance and overall management of diabetes. The integration of smart technologies into these systems can further enhance their effectiveness by enabling real-time data collection and automated insulin delivery based on glucose levels.
The Current Study
The wearable microneedle patch for closed-loop diabetes management was developed through the fabrication of a microneedle array, integration of biosensing technology, and assembly of a micropump system. The microneedle array was created using polystyrene (PS) polymer dissolved in dimethylformamide (DMF) to form a solution.
This solution was cast into a precision-machined mold featuring pyramidal microneedle structures, allowing for painless insertion into the skin. The resulting microneedles measured 400 μm at the base and 1.2 mm in height, optimized for accessing interstitial fluid for glucose monitoring.
The biosensing component utilized a graphene-Prussian blue (PB) composite, chosen for its excellent electrochemical properties. The composite was deposited onto the microneedles using a drop-casting technique and functionalized with glucose oxidase (GOD) to enable real-time glucose detection through an electrochemical reaction.
The micropump, designed to deliver insulin, was integrated with the microneedle array and utilized polyethylene glycol (PEG) functionalization to enhance stability. It consisted of an aluminium mesh anode and a stainless-steel mesh cathode, facilitating electroosmotic flow when voltage was applied.
A printed circuit board (PCB) controlled the system, continuously monitoring glucose levels and activating the micropump when concentrations exceeded a predefined threshold, thus mimicking pancreatic function. The microneedle patch's efficacy was validated in vivo using diabetic rat models induced with streptozotocin.
The system's performance was assessed by measuring blood glucose reduction following insulin delivery, demonstrating its capability to maintain glucose levels within a normal range. This innovative approach addresses critical needs in diabetes management, offering a promising solution for continuous monitoring and automated insulin delivery.
Results and Discussion
The results demonstrated that the microneedle patch effectively monitored glucose levels and administered insulin in a controlled manner. In experiments with diabetic rats, the intelligent system successfully reduced blood glucose levels from 21.8 mM to 7.8 mM within 110 minutes following insulin administration.
Subsequent glucose injections simulated food intake, leading to a rise in blood glucose levels, which the system managed by initiating insulin delivery when glucose concentrations exceeded 8.3 mM. The intelligent system was able to maintain blood glucose levels within a normal range, showcasing its potential for real-time diabetes management.
The study also highlighted the importance of stability and accuracy in the biosensor's performance. The researchers noted that variations in enzyme activity and the depletion of the graphene-PB composite could affect the sensor's reliability during consecutive measurements.
To address these challenges, the authors suggested integrating temperature and pH sensors into the biosensor to calibrate glucose detection results more accurately. This integration could enhance the system's overall performance, making it more robust in various physiological conditions.
Furthermore, the microneedle patch's advantages over existing systems were emphasized, including its small size, lightweight design, and low manufacturing costs. The potential for rapid production using techniques such as 3D printing and aerosol jet printing was also discussed, indicating a pathway for scaling up production and making the technology more accessible to patients.
The authors acknowledged that while the results were promising, further improvements in the control algorithm and performance evaluations in human subjects were necessary before widespread clinical application.
Conclusion
In conclusion, the development of a wearable microneedle patch for closed-loop diabetes management represents a significant advancement in the field of diabetes care. Integrating a biosensor for real-time glucose monitoring with an automated insulin delivery system addresses many of the limitations associated with traditional diabetes management methods.
The study's findings demonstrate the potential for improved patient compliance and better glycemic control through the use of this technology. Future research should focus on refining the system's algorithms, enhancing its stability, and conducting clinical trials to validate its effectiveness in human patients.
The integration of smart technologies into diabetes management systems holds great promise for transforming the way individuals manage their condition, ultimately leading to improved health outcomes and quality of life for those living with diabetes.
Journal Reference
Liu Y., Yang L. et al. (2024). A wearable, rapidly manufacturable, stability-enhancing microneedle patch for closed-loop diabetes management. Microsystems & Nanoengineering 10, 112. DOI: 10.1038/s41378-024-00663-y, https://www.nature.com/articles/s41378-024-00663-y
