In a recent article published in the journal Sensors, researchers presented a comprehensive study on a novel MEMS (Micro-Electro-Mechanical Systems) gas sensor designed for the detection of nitrogen dioxide (NO₂). The focus is on the development of a hierarchical In₂O₃-based sensor that operates with ultra-low power consumption while maintaining high sensitivity.

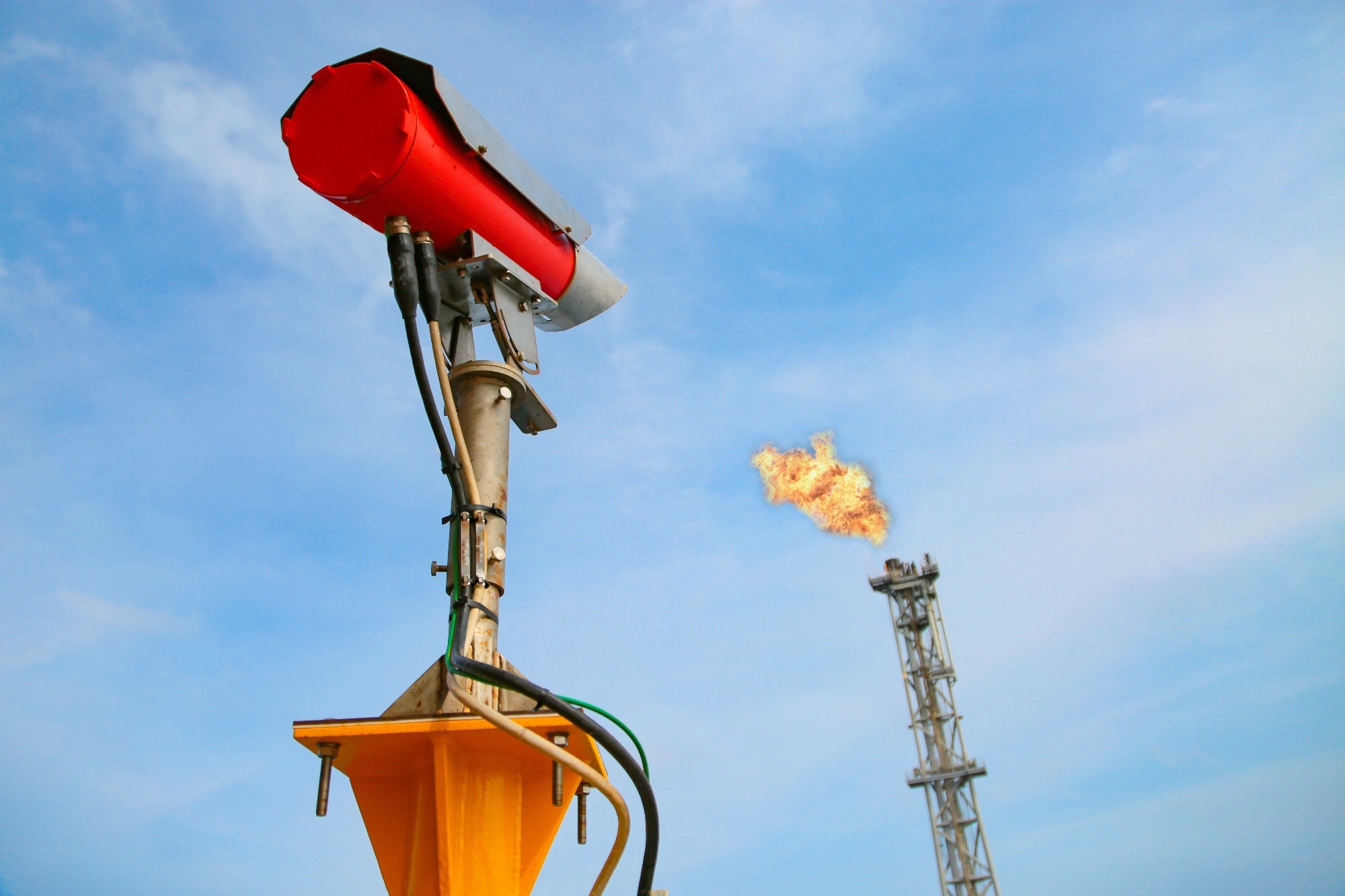

Study: Pulse-Driven MEMS NO2 Sensors Based on Hierarchical In2O3 Nanostructures for Sensitive and Ultra-Low Power Detection. Image Credit: curraheeshutter/Shutterstock.com
The increasing demand for efficient gas sensors in various applications, including environmental monitoring and industrial safety, underscores the importance of this research. The authors aim to address the challenges associated with traditional gas sensors, particularly their high energy requirements and limited sensitivity at lower concentrations of target gases.
Background
Gas sensors, particularly metal oxide semiconductor (MOS) types, are widely utilized due to their advantages such as high sensitivity, rapid response times, and cost-effectiveness. However, these sensors typically require elevated operating temperatures, ranging from 100°C to 450°C, to achieve optimal performance. This necessity for high temperatures leads to significant energy consumption, which poses limitations for portable and wearable devices.
The article discusses previous advancements in gas sensor technology, highlighting efforts to reduce power consumption through modifications in sensor materials and structures. The authors emphasize the potential of hierarchical nanostructures, specifically In₂O₃, to enhance gas sensing capabilities while minimizing energy use. The unique properties of these materials allow for improved interaction with target gas molecules, resulting in better sensitivity and faster response times.
The Current Study
The study employs a systematic approach to synthesize hierarchical In₂O₃ materials, which serve as the sensing layer for the MEMS gas sensors. The synthesis process begins with the preparation of a mixed solution containing indium chloride and sodium dodecyl sulfonate, followed by the addition of urea. This mixture undergoes a hydrothermal reaction at 120°C for nine hours, resulting in the formation of In₂O₃.
After cooling, the products are centrifuged, rinsed, and calcined at 500°C to obtain the final yellow In₂O₃ powder. The prepared powder is then combined with ethanol and deionized water to create a homogeneous paste, which is coated onto a MEMS Micro-Hot-Plate (MHP) chip. The MHP chip, equipped with heating electrodes, is crucial for the sensor's operation. The sensors undergo a drying process and are aged at 300°C for 24 hours to ensure stability before gas-sensing measurements are conducted.
The experimental setup includes two heating modes: continuous heating and pulse heating. In continuous mode, the sensor is preheated with a constant voltage for 72 hours to enhance stability. The response of the sensor is tested across a range of NO₂ concentrations, from 100 parts per billion (ppb) to 4 parts per million (ppm). In pulse heating mode, the heating parameters are adjusted to investigate the sensor's thermal response. The authors specifically analyze the effects of varying the heating duration and waiting time on the sensor's performance, aiming to optimize the conditions for detecting NO₂.
Results and Discussion
The results demonstrate that the hierarchical In₂O₃-based MEMS gas sensors exhibit superior sensitivity and performance in detecting NO₂ compared to traditional gas sensors. The pulse-driven heating mode significantly reduces power consumption, achieving a mere 0.075 mW, which is approximately 1/300 of the energy required in continuous heating mode (22.5 mW). This drastic reduction in energy usage is particularly advantageous for applications in portable and wearable devices, where battery life is a critical factor.
The study reveals that the sensor's sensitivity is enhanced in pulse mode, attributed to the rapid thermal response of the micro-heater. The authors discuss the sensing mechanism, explaining how the interaction between the gas molecules and the hierarchical In₂O₃ structure leads to the formation of negative oxygen species, which in turn improves the sensor's response characteristics. The findings indicate that the sensor can effectively detect NO₂ concentrations as low as 100 ppb, showcasing its potential for real-time monitoring in various environments.
The article also addresses the implications of these results for future gas sensor applications. The ability to operate at lower power levels without compromising sensitivity opens new avenues for integrating these sensors into Internet of Things (IoT) devices and other smart technologies. The authors highlight the importance of further research to explore the long-term stability and reliability of these sensors in diverse conditions.
Conclusion
In conclusion, the article presents a significant advancement in the field of gas sensors through the development of a hierarchical In₂O₃-based MEMS NO₂ sensor. The innovative design and pulse-driven heating mechanism not only enhance the sensor's sensitivity but also drastically reduce power consumption, making it suitable for modern applications that demand efficiency and portability.
The research underscores the potential of hierarchical nanostructures to improve gas sensing technologies and addresses the pressing need for low-energy solutions in environmental monitoring and safety. The findings pave the way for future developments in gas sensors, particularly in wearable and IoT devices, where energy efficiency is paramount.
Journal Reference
Mei H., Zhang F., et al. (2024). Pulse-Driven MEMS NO2 Sensors Based on Hierarchical In2O3 Nanostructures for Sensitive and Ultra-Low Power Detection. Sensors, 24, 7188. DOI: 10.3390/s24227188, https://www.mdpi.com/1424-8220/24/22/7188
