CAS DataLoggers together with bestselling manufacturer Delphin Technology introduces the all-new Expert Key 100T and 200T models, designed for multi-channel temperature measurement but also suited to temperature measurement and combined high-speed signal acquisition.
The compact Expert Key T devices have console-type housings and are specifically designed for use in laboratories and test stands as tabletop or wall-mounted devices. The system’s analog and digital inputs and outputs are easy to access, and signals and actuators are quick to connect without requiring any tools. Expert Key model T data loggers are ideal solutions for users in industry, R&D, testing/inspection agencies, and universities. Users can also deploy these sophisticated devices to automate testing and experimental procedures, document product quality, and acquire, monitor and analyse measurement data.

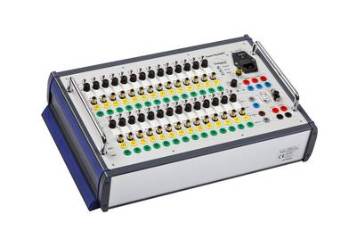

Expert Key 100T and 200T models designed for multi-channel temperature measurement.
Providing a wide input array for a broad range of applications, the Delphin Expert Key Model T Data Acquisition System is a cost-effective solution for analog data acquisition and laboratory applications, jumpstarting projects while fitting easily into departmental budgets. Universal analog inputs permit the direct connection of RTDs, thermocouples and mVolt/mA signals. Each analog input is equipped with BNC and thermo mini connectors to connect any type of thermocouple, giving users the option to choose the best sensor type for their specific project. Additionally, channels can be assigned individual sampling rates as high as up to 100 kHz to enable simultaneous processing of temperature channels and high-speed inputs, e.g. to detect pressure peaks. All inputs have galvanic isolation for protection against earth loop influents.
The newest Expert Key models also include powerful ProfiSignal Go professional PC software and a complete range of drivers for third-party measurement software, saving users the expense of having to acquire additional software. ProfiSignal Go enables online and offline monitoring, analysis of measurement data, and enables quick set-up. This user-friendly software can also exchange data with other systems using an OPC server or Modbus TCP, and an OCX interface is also provided to interface with custom programs.
Delphin Technologies data loggers and data acquisition systems solve a variety of measurement and control problems in industrial and laboratory applications. They feature different analog and digital input and output modules that can be used with a wide range of signal types including voltage, 4-20 mA current, thermocouple, RTD, and resistance. These instruments also offer powerful alarm and programming capabilities allowing them to process measurements and initiate actions on their own. Delphin systems can be used for local data acquisition and logging when connected to a PC, for remote unattended data collection connected the internet, or as stand-alone devices.
