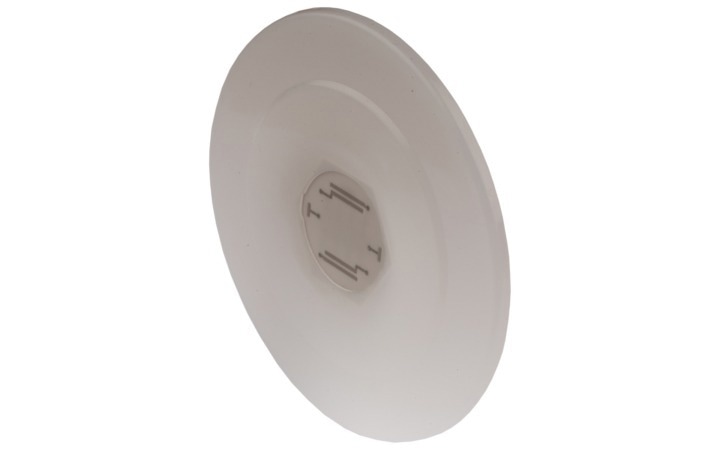

Hamilton's Incyte viable cell density sensor patches can now be seamlessly incorporated into single-use bioreactor bags. To get started, simply connect the reusable outer module.

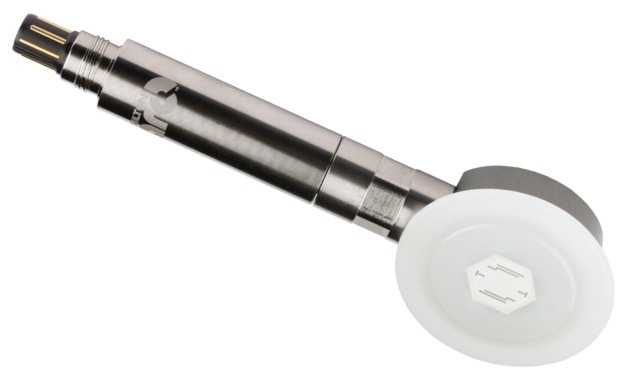

Incyte-P SU
Image Credit: Hamilton Process Analytics
The Incyte-P SU (in conjunction with the Incyte-P Arc Module) enables real-time, in-situ assessment of viable cells, allowing for the detection and response to events in real-time without increased off-line sampling.

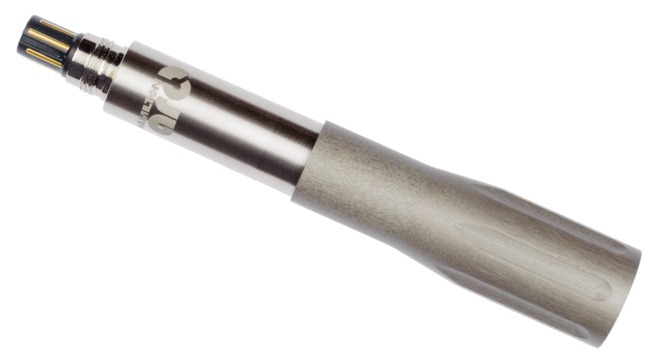

Arc Module Incyte-P SU
Image Credit: Hamilton Process Analytics
The Arc Module Incyte-P, when used together with the Incyte-P SU, provides real-time, in-situ monitoring of viable cells. This integration enables the prompt detection of events and allows for immediate response, all while eliminating the need for additional off-line sampling.
Arc Module Incyte-W SU
Image Credit: Hamilton Process Analytics
Together, the Arc Module Incyte-W and the Incyte-W SU facilitate real-time, in-situ measurement of viable cells. This synergy allows for the immediate detection of events and swift response, negating the necessity for supplementary off-line sampling.

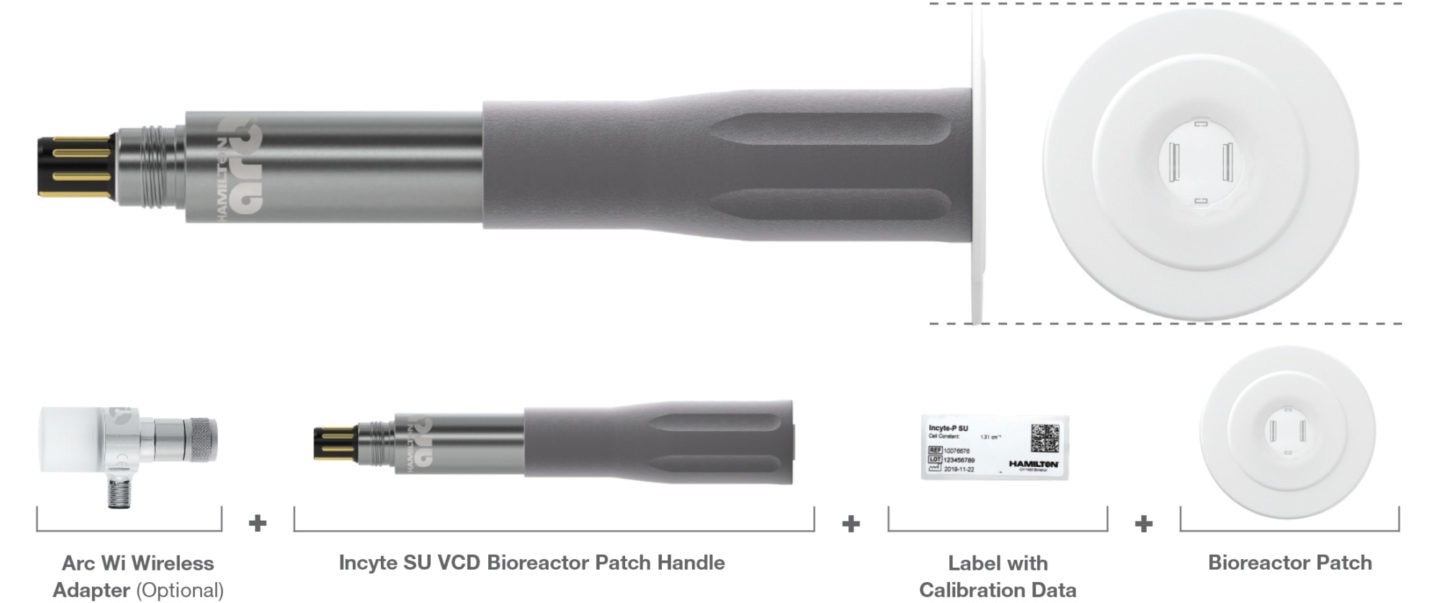

Anatomy of Incyte SU Viable Cell Density (VCD)
Image Credit: Hamilton Process Analytics
Source: Hamilton Process Analytics
| Criteria |
Description |
| Measurement principle |
Permittivity and Conductivity |
| Measurement range |
0–700 pF/cm, equivalent to 5 x 105 to 8 x 109 cells/mL (mammalian) |
| Installation |
Weld-in flush sensing element |
| Arc Module Options |
Straight for stirred tank bags |
| Wetted Parts |
HDPE / Ceramic / Glass / Platinum |
