Conducell 4U×F Conductivity Sensor

Need more information?

Let us help you with your inquiries, brochures and pricing requirements

Request A Quote
Download PDF Copy

The Conducell 4U×F Arc 4-pole conductivity sensors have a VP8 connector and PG13,5 process connections. The Arc technology incorporated in these sensors enables the storage of calibrations within the sensor itself, providing predictive diagnostics, automated documentation, and user and process assignment features.

These sensors can be directly connected to the control system, eliminating the need for a transmitter. Their compatibility with various communication protocols enables simple integration.

These Conducell 4U×F sensors are FDA-certified and can be utilized in hygienic applications, as they are compatible with CIP, SIP, and autoclave processes, offering excellent linearity across a wide range of conductivity levels.

The electrodes for these sensors come in different materials, including Stainless Steel (USF, 1.4435, & UHF, 2.4602), Platinum (UPtF), and Titanium (UTF). Stainless steel 1.4435 is the most commonly used electrode material suitable for typical biopharmaceutical applications.

Platinum can be utilized for long-term stability and corrosion resistance. Stainless steel 2.4602 can be used in extremely corrosive or chemically aggressive applications because of its remarkable resilience. Titanium is particularly suited for use with corrosion, such as seawater.

Source: Hamilton Process Analytics

Part # / Ref	a-length	Process Connection	Wetted Parts	Sensor Output
243590-1171	21 mm	Triclamp 1.5"	Stainless Steel 1.4435 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document	Arc: Modbus, 4 to 20 mA
243590-3171	21 mm	Triclamp 1.5"	Stainless Steel 1.4435 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document	Arc: Modbus, 4 to 20 mA
243590-1151	30 mm	PG13,5	Stainless Steel 1.4435 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document	Arc: Modbus, 4 to 20 mA
243590-2151	30 mm	PG13,5	Stainless Steel 1.4435 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document	Arc: Modbus, 4 to 20 mA
243590-3151	30 mm	PG13,5	Stainless Steel 1.4435 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document	Arc: Modbus, 4 to 20 mA
243590-4151	30 mm	PG13,5	Stainless Steel 1.4435 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document	Arc: Modbus, 4 to 20 mA
243590-1161	60 mm	PG13,5	Stainless Steel 1.4435 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document	Arc: Modbus, 4 to 20 mA
243590-2161	60 mm	PG13,5	Stainless Steel 1.4435 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document	Arc: Modbus, 4 to 20 mA
243590-3161	60 mm	PG13,5	Stainless Steel 1.4435 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document	Arc: Modbus, 4 to 20 mA
243590-4161	60 mm	PG13,5	Stainless Steel 1.4435 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document	Arc: Modbus, 4 to 20 mA
243590-1111	120 mm	PG13,5	Stainless Steel 1.4435 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document	Arc: Modbus, 4 to 20 mA
243590-2111	120 mm	PG13,5	Platinum PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document	Arc: Modbus, 4 to 20 mA
243590-3111	120 mm	PG13,5	Stainless Steel 2.4602 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document	Arc: Modbus, 4 to 20 mA
243590-4111	120 mm	PG13,5	Titanium PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document	Arc: Modbus, 4 to 20 mA
243590-1121	215 mm	PG13,5	Stainless Steel 1.4435 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document	Arc: Modbus, 4 to 20 mA
243590-2121	215 mm	PG13,5	Platinum PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document	Arc: Modbus, 4 to 20 mA
243590-3121	215 mm	PG13,5	Stainless Steel 2.4602 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document	Arc: Modbus, 4 to 20 mA
243590-4121	215 mm	PG13,5	Titanium PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document	Arc: Modbus, 4 to 20 mA
243590-1131	325 mm	PG13,5	Stainless Steel 1.4435 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document	Arc: Modbus, 4 to 20 mA
243590-2131	325 mm	PG13,5	Platinum PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document	Arc: Modbus, 4 to 20 mA
243590-3131	325 mm	PG13,5	Stainless Steel 2.4602 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document	Arc: Modbus, 4 to 20 mA
243590-4131	325 mm	PG13,5	Titanium PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document	Arc: Modbus, 4 to 20 mA
243590-1141	425 mm	PG13,5	Stainless Steel 1.4435 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document	Arc: Modbus, 4 to 20 mA
243590-2141	425 mm	PG13,5	Platinum PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document	Arc: Modbus, 4 to 20 mA
243590-3141	425 mm	PG13,5	Stainless Steel 2.4602 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document	Arc: Modbus, 4 to 20 mA
243590-4141	425 mm	PG13,5	Titanium PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document	Arc: Modbus, 4 to 20 mA

Accessories

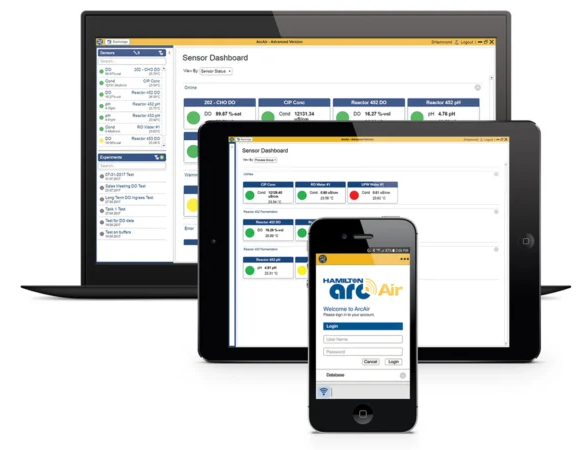

Arc Software and Accessories

Simplify the calibration, configuration, and other common workflows of Arc sensors through ArcAir software and wireless accessories.

Conducell 4U×F Conductivity Sensor

Image Credit: Hamilton Process Analytics

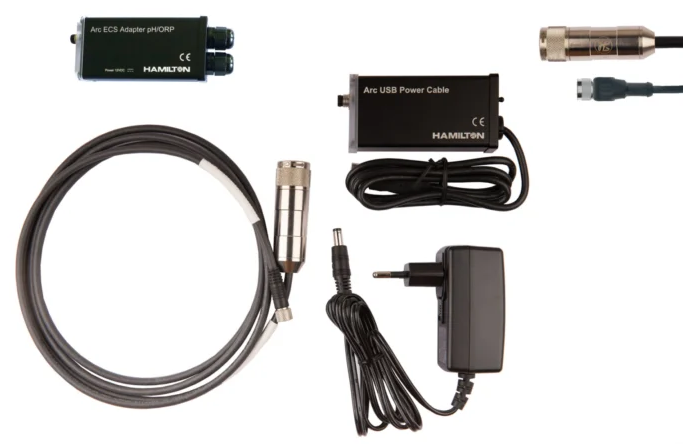

Arc Sensor Cables

M12 or Variopin connectors are included with genuine Hamilton cables for Hamilton Arc sensors. The Arc sensor is programmed using these cables, which are also utilized for direct connections to the bioreactor or control system.

Conducell 4U×F Conductivity Sensor
