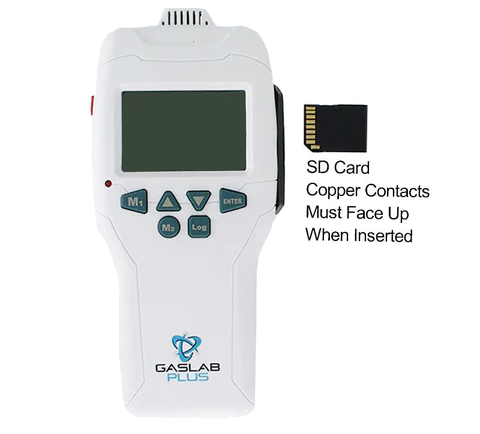

CM-510: Multi Gas Handheld Detector

The Multi Gas (CO₂, CO, O₂, NH₃) Handheld Detector is designed to measure multiple gas concentrations across a wide range of industries. With this solution, users can store data for a long period of time, analyze many gases, and set up loud alarms.

Features

• Audible alarms will sound if concentrations exceed normal thresholds
• Li-ion rechargeable batteries for longevity and increased lifespan
• Measures: CO₂, CO, O₂, NH₃, PM2.5, PM10, Temp, RH, Barometric Pressure
• Unlimited data logging with an SD card

Image Credit: CO2Meter

About CO₂ Storage Safety Codes

Please note that this device does not fulfill the requirements for CO₂ safety monitoring, as it is not a fixed/wall-mounted, hard-wired alarm as specified by NBIC, NFPA, or IFC regulations. Refer to the CO₂ Safety Products page to explore devices that align with your requirements.

Applications

• Food and Drink Mixing
• Farming
• Fishing
• Cryogenics
• Scientific
• Health Security

Specifications

• Measures: CO₂, CO, O₂, NH₃, PM2.5, PM10, Temp, RH, Baro
• Sensing method: NDIR, EC, and Fluorescence quenching by Oxygen
• CO₂ Measurement range: 0~9999 ppm (5,001~9999 ppm over range)
• CO Measurement range: 0~1,000 ppm
• O₂ Measurement range: 0-25%
• NH₃ Measurement range: performance indicator only
• Temperature Range: 0~50 °C
• PM2.5,10 Measurement range: 999 ug/m³ (whichever is greater)
• CO2 Accuracy: ± 50ppm, ± 5% of reading (0~5,000 ppm)
• CO Accuracy: ±5%~±10%
• O2 Accuracy: <2% FS/0.1 mbar
• NH3 Accuracy: ±10%
• PM2.5,10 Accuracy: ±15% or ±15 μg/m^³, whichever is greater
• RH: 0-100%
• Barometer Measurement Range: 50~110 kPa
• Power Supply: 3 Rechargeable Batteries - Li-ion 18650 3.7 V
• Weight: 305 g (without batteries)
• Life Span:
  • NDIR: Up to 15 years
  • EC: 1 year
  • NH3: 2 years
  • Fluorescence-based by quenching: 5 years

Includes

• Three (3) Li-ion rechargeable batteries
• Manual
• Multi-Gas Detector
• USB Charging Cable
• SD Card, Data Logging Capability
• 1 year warrany

Accessories

BAT-18650 - EBL 18650 3.7 V Li-ion Rechargeable Batteries

EBL Intelligent Batteries, requiring a set of three per device, offer swift charging capabilities and have been upgraded to meet ETL certification standards, ensuring compatibility with all CM-500 series handheld gas detectors.

EBL Universal Battery Charger for 3.7 V Rechargeable Batteries

Utilizing the EBL Universal Battery Charger, users can conveniently charge lithium batteries by simply plugging them into a USB outlet. The charger features a clear indication of charge levels, with a green light signaling full charge status.
