CO2 Sensor Module (030-8-0006)

The K30 10,000 ppm CO2 Sensor Module (030-8-0006) is industry-renowned for its affordability, accuracy, longevity, and minimal maintenance. It is utilized in numerous HVAC and IAQ products and applications and easily programmable with multiple output options, fitting almost all original equipment manufacturer project requirements.

Features

• Suitable for commercial, residential, HVAC, or IAQ applications
• Easy installation, pre-calibrated, and ready to use
• Provides two analog outputs and two digital outputs
• Reliable, cost-effective, and maintenance-free

Models

• K30 CO2 Sensor (030-8-0006): Designed for integration into high-volume OEM products.

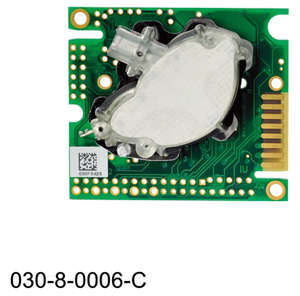

• K30 CO2 Sensor with Custom Outputs (030-8-0006-C): Customize analog or digital outputs to suit all application needs.

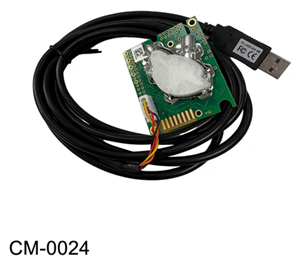

• K30 CO2 Sensor Development Kit (CM-0024): Simple to use; connect the sensor module to the PC via USB. Utilize the free GasLab^® software to measure and graph CO₂ levels in real-time or for data logging.
• Sensor Development Kit (CM-200): Easy to operate; connect the sensor to the PCB, then link it to the PC via USB. Use the free GasLab^® software for CO₂ measurement and graphing, or access the source code library on Github to create an application or for OEM batch testing/configuration.

Specifications

• CO₂ Measurement: Non-dispersive infrared
• Rate of Measurement: Every two seconds
• Measurement Range: 0-10,000 ppm (0-5,000 ppm within specifications)
• Response Time Diffusion: 20 seconds
• Automatic Background Calibration (ABC): Enabled unless specified
• Response Time Sample Draw: 2 seconds @ .5 l/minute tube gas flow
• Outputs: Two analog, two digital
• Warm-up Time: < 1 minute (@ full specs < 15 minutes)
• Programmable Range: 0-10,000 ppm (custom configuration required)
• Accuracy: ± 30 ppm ± 3 % of measured value within specifications
• Repeatability: ± 20 ppm ± 1 % of measured value within specifications
• Maintenance Interval: No maintenance required
• Self-Diagnostics: Complete function check at startup
• Dimensions: 51 × 58 × 14 mm (Length × Width × approximate Height)
• Sensor Life Expectancy: > 15 years

Conforms with Standards

• Immunity: EN61000-6-2:2001
• Emission: EN61000-6-3:2001
• Compliant with RESET grad B
• Compliant with ANSI/ASHRAE Standard 62.1-2022
• Compliant with WELL Building Standard^® (WELL v2^TM)
• RoHS directive 2002/95/EG

Electrical/Mechanical

• Current Consumption: 40 mA average
• Power Input: 5.5-14 VDC, stabilized to within 10 % (external protection circuits required)
• Sampling Method: Diffusion (tube cap optional)

Warranty

• 90 days

Accessories

• Gas Sensor Development Kit (CM-0024): Offers an easy drop-in solution, complete with the free GasLab data logging software.
• Tube Cap Adapter: Converts the sensor from ambient CO₂ measurement to a sample draw sensor. Use with a pump, tubing, and filters to measure CO₂ levels in enclosed spaces.
• Sample Draw Pump Kit: Provides all necessary components to create a closed CO₂ measurement system with a sample draw sensor.
• Probe Enclosure: Comes with hydrophobic filters, providing sensor protection in harsh environments.
