The Flash DSC 2+ revolutionizes rapid-scanning DSC. The tool can analyze reorganization processes that were previously impossible to quantify. It is the perfect complement to traditional DSC. Today, rates of heating and cooling span more than 70 years.
The extremely high heating and cooling rates expand the investigation of thermally induced physical transitions and chemical processes, such as the crystallization and rearrangement of polymers.
- Ultra-high cooling rates – Permit the fabrication of materials with certain structural characteristics
- Ultra-high heating rates – Inhibit the processes of restructuring
- Wide temperature range – The temperature range for measurements is -95 to 1000 °C.
Specifications
Specifications - Flash DSC 2+ - Flash Differential Scanning Calorimeter. Source: Mettler Toledo International
| . |
. |
| Technique |
Differential Scanning Calorimetry (DSC)
Fast Scanning Calorimeter |
| Applications |
Crystallization
Glass Transition
Heat Capacity (cp) |
| Data Sampling |
Max. 10000 data pts/sec |
| Temperature Range |
-95 °C – 1,000 °C |
| Options |
Microscopy |
| Sensor Output |
Heat Flow |
| Signal Time Constant |
Approx. 0.2 ms (UFH 1), approx. 1 ms (USF 1) |
| Cooling Rate (min) |
6 K – 2,400,000 K |
| Heating Rate (/min) |
6 K – 3,000,000 K |
| Sensor Types |
UFH 1 (high-temperature) or UFS 1 (standard) |
Innovative Technology
Features and Benefits of the Flash DSC 2+

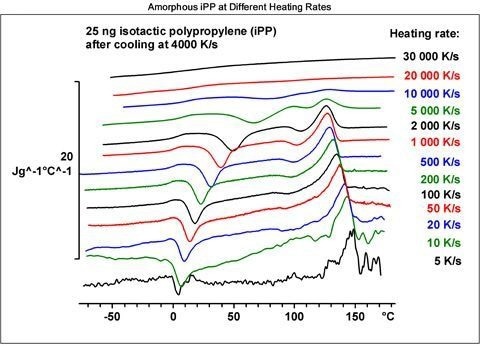

Ultra-high heating rates – Inhibit the processes of restructuring
Image Credit: Mettler Toledo International

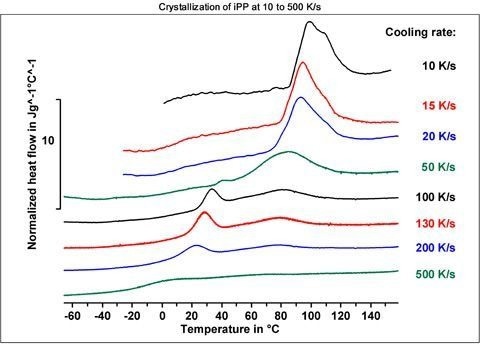

Ultra-high cooling rates – Permits the production of materials with certain structural characteristics.
Image Credit: Mettler Toledo International

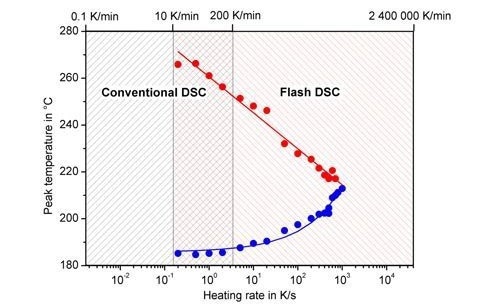

High sensitivity – Allows for measurements that overlap with traditional DSC at low heating rates.
Image Credit: Mettler Toledo International
Wide temperature range – Takes measurements between -95 and 1000 °C.
Image Credit: Mettler Toledo International
Simplicity of use – From simple sample preparation and sensor replacement to practical outcome assessment
Image Credit: Mettler Toledo International
Oxygen-free conditions – Shield the sample from oxidation.
Image Credit: Mettler Toledo International
Fast response sensor – Allows for studying the kinetics of incredibly quick reactions or crystallization processes.
Image Credit: Mettler Toledo International
