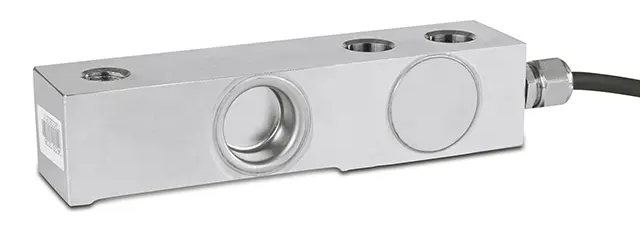

Threaded load-introduction holes are seen in threaded beam load cells. Due to this, integrating the load cells into new or pre-existing weighing systems is incredibly simple. For floor scales and weighing platforms where a threaded foot makes height adjustment simple, the threaded load-introduction hole is the best option.
Image Credit: Mettler Toledo - International
Ingress Protection for Challenging Environments
Image Credit: Mettler Toledo - International

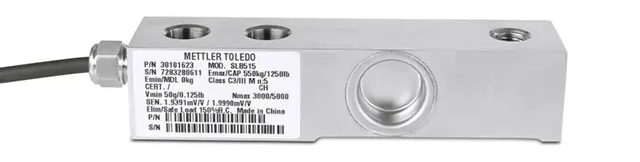

SLB515 load cells are perfect for tough environments in food, pharmaceutical, and process applications because of their stainless-steel, hermetically sealed design. For optimal stability and measuring performance, the load cell is protected from dust and moisture by the IP68/IP69K protection.
Accessories
Image Credit: Mettler Toledo - International

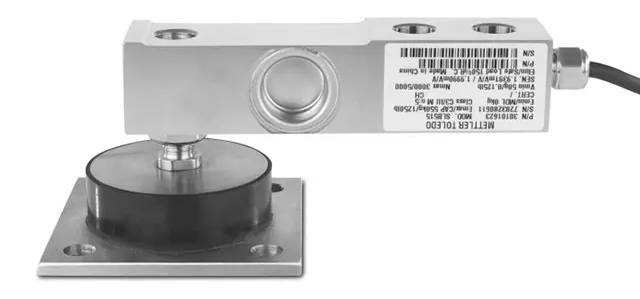

For top mounting applications, the optional Expansion and Vibration Kit (EVK) can be used to allow for thermal expansion and contraction while guaranteeing peak performance and vibration isolation. Although the EVKT is an affordable option, all necessary safety restraints need to be supplied outside.
The Foot Kit (FKT) can be utilized for convenience in floor scale applications that require height modification.
