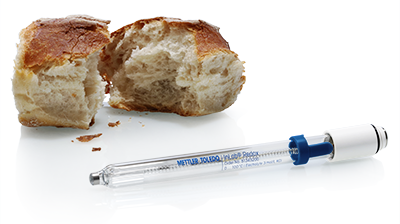

Oxidation-Reduction Potential (ORP), sometimes known as redox sensors, measures a solution's ability to act as an oxidizing or reducing agent. The ionic potential data obtained by an ORP probe is crucial for a variety of industrial applications, including evaluating the purity of drinking water, monitoring the anaerobic activity of wastewater, and guaranteeing uniformity in food manufacturing operations like baking.
METTLER TOLEDO manufactures a diverse range of high-quality ORP electrodes for both laboratory and field applications. ORP sensors using silver, platinum, or gold rings can monitor redox potentials in media with a variety of chemical characteristics.

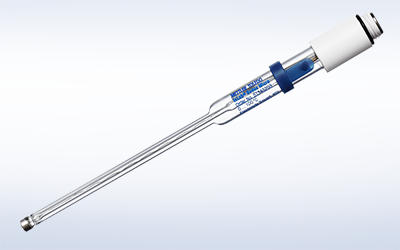

ORP Combination Electrode InLab Redox
Image Credit: Mettler Toledo - International
A combination of ORP electrode, platinum ring indicator, and S7 screw head.
- Metal options: Platinum, Silver or Gold ring
- Temperature Range: 0 °C – 100 °C
- Connector: S7
- Available also with movable glass junction (Redox Flow), with a small shaft (Redox Micro) or large 170 mm shaft (Redox-L)

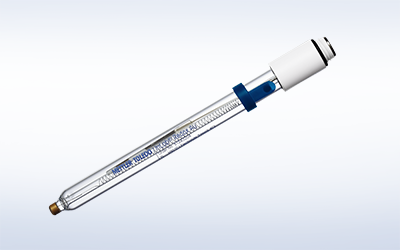

ORP Half-Cell Electrode InLab Redox
Image Credit: Mettler Toledo - International
A ORP half-cell with silver ring indicator and S7 screw head.
- Metal options: Ag805 ring / Ag850 tip / Pt805 ring
- Temperature Range: -30 °C – 130 °C
- Connector: S7

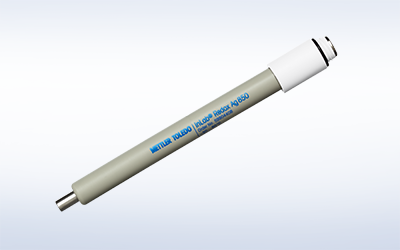

Redox electrode LE501
Image Credit: Mettler Toledo - International
Affordable and reliable glass ORP electrode with platinum pin for lab use
- Metal: Platinum Pin
- Measuring range: -2000 – 2000 mV
- Temperature Range: 0 °C – 80 °C
Redox electrode LE510
Image Credit: Mettler Toledo - International
Robust plastic ORP electrode with platinum pin for field use, e.g. swimming pools
- Metal: Platinum Pin
- Measuring range: -2000 – 2000 mV
- Temperature Range: 0 °C – 80 °C
Advantages of METTLER TOLEDO's Laboratory ORP Sensors

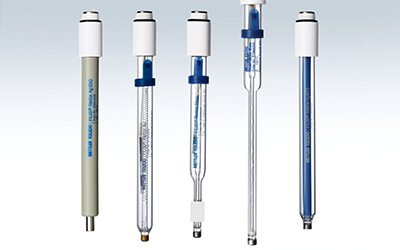

The Right Sensor for the Needs
Image Credit: Mettler Toledo - International
METTLER TOLEDO provides an appropriate electrode for ORP sensors, whether they are utilized in laboratory settings or transported to harsh outdoor or industry settings. This sensor supports accuracy in any application, from routine daily monitoring to highly specialized workflows, by having the proper reference system, junction, metal, and form.

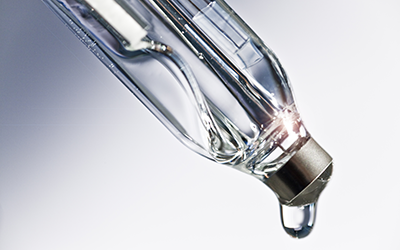

Built to Last
Image Credit: Mettler Toledo - International
As long as the right sensor is used for each lab or field application, METTLER TOLEDO ORP sensors provide excellent performance and have a longer lifespan due to the proper material and technology matching. The durability of the lab ORP sensors is guaranteed by the shaft materials, even in challenging or close-to-production settings.
Adapts to the Needs
Image Credit: Mettler Toledo - International
Any sample size can be easily and accurately measured for redox using laboratory ORP electrodes of varying lengths.
Platinum Ring Sensors
Image Credit: Mettler Toledo - International
Inert platinum ring-based redox sensors cover most applications, while an ARGENTHAL™ reference system offers contamination-free junctions and a constant reference potential.
Silver Ring Sensors
Image Credit: Mettler Toledo - International
Laboratory ORP/redox sensors with a silver sensing ring provide accuracy in argentometric applications.
Gold Ring Sensors
Image Credit: Mettler Toledo - International
ORP/redox sensors with a gold sensing ring are ideal for severely oxidizing substances.

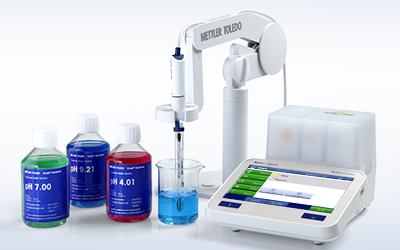

All-in-One Solution
Image Credit: Mettler Toledo - International
METTLER TOLEDO offers whole electrochemistry systems, including software, calibration and verification standards, meters, and sensors. Construct a simple system that combines automation, data transport, and measurement.
